Track OrderBrand: Patel Brothers

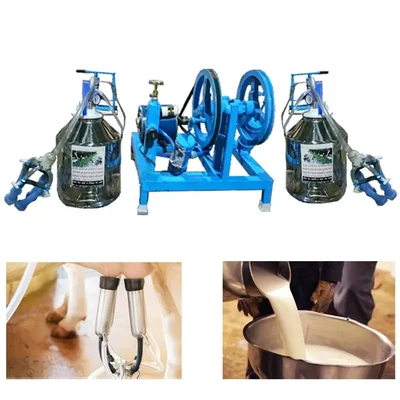

Commercial Double Bucket (20L x 2) Milking Machine with 0.5 HP Motor and 60 PPM
SKU: CM-PB-21964
₹34570 (Including GST)
MRP : ₹36200
Get extra ₹519 Discount (On Checkout)
Delivery By: Apr 8 - Apr 10
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Double Bucket Milking Machine
0.5 HP Motor
20 x 2 Liters Stainless Steel Buckets
Country of origin: India
Description
The Commercial Double Bucket Milking Machine is a device designed to extract milk from cows and buffaloes. This machine automates the process of milking livestock and, at the same time, reduces both the time and effort involved in milking them. The machine consists of teat cups that are attached to animal's udders, a vacuum system which creates suction to extract milk, and a and series of pipes which connect the milking cluster with the milking bucket. The milking buckets are made of stainless steel material and have a storage capacity of 20 litres each. This milking machine is suitable for individuals who own a couple of cows or for large dairy farm owners.
Features
:- Increased Capacity : The double bucket design allows for simultaneous milking from two cows, significantly increasing the volume of milk collected in a shorter timeframe.
- Time Efficiency : With the ability to milk two cows at once, farmers can reduce labor hours and improve productivity during milking sessions.
- Durable Construction : Made from robust materials, the double bucket milking machine is built to withstand the rigors of daily use on a dairy farm.
- Easy Cleaning and Maintenance : The design allows for quick disassembly, simplifying the cleaning process and promoting sustained hygiene standards.
Specification
:- Brand: Patel Brothers
- Weight (Approx.) : 50 kg
- Material : Stainless Steel
- Motor Power : 0.5HP
- Phase : Single
- Motor Speed : 1440 RPM
- Voltage : 220-240V
- No. of Buckets : 2
- Storage Capacity : 20L x 2
- Operation : Automatic
- Time required for milking cow : 3-4 min
- Time required for milking buffalo : 6-8 min
- Productivity : 25-35 cows per hour
- Continuous Vacuum in Milking Line : 300 mm H20 max
- Pulse Rate : 60 per minute
- Cleaning : Boiling Water
- Weight : 50 kg (Approx.)
Usage
:Step 1 : Preparing for Milking
- Clean the Milking Area : Sanitize the Milking area ensure the milking area is clean and sanitary to prevent contamination of the milk.
- Prepare the Equipment : Check the milking machine for any signs of wear and tear. Make sure all components are clean and functioning properly.
Step 2 : Setting Up the Milking Machine
- Connect the Vacuum Pump : Plug into a power source and check that all connections are secure.
- Test the Vacuum : Before attaching the teat cups, test the vacuum system to ensure it is functioning correctly; there should be adequate suction.
- Adjust the Milking Pulsator : Set the pulsator rate according to the manufacturer's instructions.
Step 3 : Milking Process
- Position the Teat Cups : Guide each teat cup onto the respective teats gently and securely. Ensure that they are aligned properly to avoid any discomfort to the animal.
- Check for Proper Seal : Observe if the tea cups are holding their position without excessive pressure. A good seal will maintain the right suction.
- Observe Milk Flow : As the milking progresses, monitor the flow of milk through the milk line. A steady flow indicates that the suction is working effectively.
- Watch for Discomfort : Keep an eye on the animal for signs of discomfort. If the animal appears stressed or agitated, stop the process and reassess the machine setup.
- Signs of Completion : Detach the cups once the milk flow significantly slows or stops. This typically indicates that the udder is empty.
- Release Vacuum : Turn off the vacuum pump before removing the teat cups to avoid discomfort or injury to the animal.
Step 4 : Maintenance of Milking Machine
- Daily Cleaning : After each milking session, dismantle and wash all components with warm water and a suitable detergent. Rinse thoroughly to remove any residues.
- Regular Inspection : Check for wear and tear, especially on rubber components such as gaskets and liners. Replace them as needed to prevent leaks and ensure proper function.
- Periodic Servicing : Schedule regular professional maintenance checks on your milking machine to keep it in optimal condition.
Applications
:- Commercial Dairy Farming : Milking machines are primarily used in commercial dairy farms to increase efficiency and productivity. They allow for the rapid milking of large numbers of cows, significantly reducing labor costs and time compared to traditional hand milking.
- Improved Milk Quality : The use of milking machines helps maintain better hygiene standards during the milking process. Automated systems minimize human contact with milk, reducing the risk of contamination and ensuring higher quality milk production.
- Small-Scale Dairy Operations : While primarily associated with large-scale operations, smaller farms also benefit from portable or smaller capacity milking machines that allow them to enhance their productivity without significant investment in infrastructure.
Toolsvilla deals with various types of Dairy Equipment. Wide varieties of Milking Machines are used for milking cows & buffaloes.
This product will be shipped in 3 packages.View All
