Brand: Generic ( Made in India )

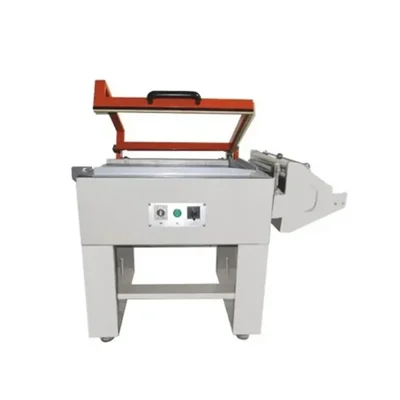

L Type Manual Sealer Machine 1000 pouch per hour
SKU: AK-AP-20211596
MRP : ₹52000
Offer Price : ₹41971 (Including GST)
Get extra ₹630 Discount (On Checkout)
Delivery By: Dec 29 - Dec 31
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
L Type Manual Sealer Machine
1000 pouch per hour Capacity
Max sealing dimension (L x W): 500 x 450 mm
Country of origin: India
Description
This L Type Shrink Packaging Machine is a type of automated packaging equipment used to seal and shrink wrap products with heat. It usually has an L-shaped sealing mechanism that allows for efficient wrapping of various product shapes and sizes. The machine works by feeding things into the sealing area, wrapping them in shrink film, sealing them, and then passing them through a heat tunnel, which shrinks the film securely around the product. It can finish sealing and cutting at the same time, working with shrink tunnel.
Features
:- The machine finishes sealing and cutting films at the same time. Some kinds of films are suitable, PE, PVC, PP, and so on.
- The operation is putting one product in the film, sealing and cutting the film according to the size of the product.
- The machine always works with a shrink tunnel, such as BS series shrink tunnels.
Specification
:- Product Type: Table Top
- Brand: Generic ( Made in India )
- Model No : FQL 450B
- Voltage : 220 V
- Frequency : 50 Hz
- Heater power : 1 kW
- Seal cut time : 0-3 seconds
- Capacity : 1000 pouch per hour
- Max sealing dimension (L x W): 500 x 450 mm
- Machine Dimensions (L x W x H) : 1450 x 790 x 730 mm
- Weight : 95 kg (Approx)
NOTE : Lid color may vary.
Applications
:1. Preparation :
- Ensure the machine is placed on a stable, flat surface.
- Plug in the machine and turn it on to allow it to heat up.
2. Adjust Settings :
- Set the sealing time using the timing knob on the control panel. The adjustable range is typically between 0-3 seconds depending on the thickness of the film being used.
3. Loading Film :
- Place the roll of shrink film onto the roller at the back of the machine.
- Pull enough film forward to cover the area you intend to seal.
4. Positioning Pouches :
- Place your pouches or items that need sealing under the sealing bar, ensuring they are aligned properly for an even seal.
5. Sealing Process :
- Press down on the sealing arm firmly to initiate sealing.
- Release once done; this should create a secure seal across the pouch.
Maintenance :
- Inspect Sealing Jaws : Look for any signs of damage or wear that could affect sealing quality.
- Clean Sealing Jaws : Use a soft cloth and a non-abrasive cleaning solution to remove any residue.
Usage
:- Cosmetics : Ideal for high and thin cosmetic products, ensuring a neat and professional appearance.
- Food Products : Commonly used to package food items, providing protection against moisture and contamination.
- Pharmaceuticals : Used for packaging medicine, ensuring tamper-evident seals that maintain product integrity.
- Consumer Goods : Suitable for wrapping electronics, books, DVDs, and other small consumer items.
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 10 cm X 10 cm X 10 cm
Package Weight
:
45.00 Kg
