Brand: Generic ( Made in India )

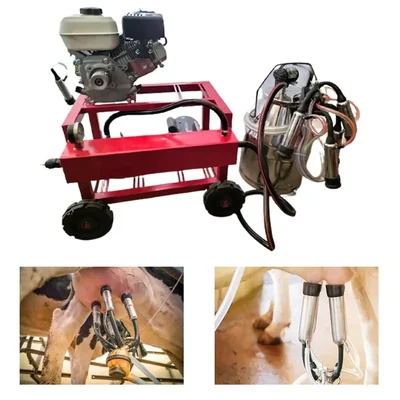

Single Bucket Milking Machine with 5 HP Engine and 1 HP Motor
SKU: AB-PB-21998
MRP : ₹39700
Offer Price : ₹36880 (Including GST)
Get extra ₹553 Discount (On Checkout)
Delivery By: Dec 27 - Dec 29
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Single Bucket Milking Machine
20 Litres Capacity, Stainless Steel Bucket
3 to 4 mins for milking cow, 6 to 8 mins for buffalo
Country of origin: India
Description
The Single Bucket Milking Machine used for the purpose of extracting milk from cows and buffaloes. This machine automates the milking process and reduces both time and labour required in the milking process. The milking machine is equipped with a 1 HP motor and a 5 HP engine which provides the machine with required power to conduct the milking process efficiently. This machine consists of a milking cluster which attaches to the udders of the animal, a series of pipes which connect the milking cluster with the milking tank which helps in carrying the milk extracted from the animal's udders to the milking tank. The milking tank has a storage capacity of 20 litres and is made up of stainless steel material which ensures food grade safety.
Features
:- Vacuum System : Equipped with vacuum mechanism, the machine creates uniform pressure to facilitate smooth milk flow to the cluster unit. This design minimizes the risk of leakage and ensures that milking is done efficiently.
- Automatic Functionality : This milking machine is designed to conduct the tedious and time consuming task of milking dairy animals with ease. This machine not only automates the milking process but also helps increase efficiency.
- Hygiene Maintenance : One of the primary designs of milking machines is to reduce human contact with milk, thereby maintaining high hygiene standards and resulting in lower bacterial counts in the milk produced.
- Mobility : The entire machine is mounted on a frame with wheels, allowing for easy movement across the dairy shed. This feature is particularly beneficial for farmers who need to milk cows in different locations without the hassle of relocating heavy equipment.
Specification
:- Product Type: Single Bucket
- Brand: Generic ( Made in India )
- Engine Power : 1.5kW, 5HP, 3600 RPM
- Max. Torque : 4.5 nm
- Motor Power : 1 HP, Single Phase
- Motor Speed : 2500 RPM
- Engine Type : 1 Cylinder, 4 Stroke, OHV, forced air-cooled
- Starter Type : Recoil start
- Fuel : Petrol Start Kerosene Run
- Fuel Tank Capacity : 0.45/0.8L
- Oil Capacity : 0.45 L
- Consumption (g/kw.h) : Less than or equal to 420
- Belt Pulley : Yes
- Storage Capacity : 20 Liters
- Bucket Material : Stainless Steel
- Pulse Rate : 60 per minute
- Cleaning : Boiling Water
- Time required for milking cow : 3-4 min
- Time required for milking buffalo : 6-8 min
- Productivity : 10-20 cows per hour
- Weight : 50 Kgs (Approx.).
Usage
:1. Prepare the Milking Area :
- Ensure Cow Comfort : Use clean bedding and maintain a calm atmosphere.
- Check the Machine : Inspect all components for cleanliness and functionality to avoid malfunctions during milking.
2. Prepare the Cows for Milking :
- Inspection : Check cows for any signs of illness or discomfort.
- Hygiene : Clean the udder and teats thoroughly with warm water and a sanitizing solution to minimize the risk of infection.
- Calm the Animals : Keep the environment quiet and stress-free, and handle the cows gently to ensure their comfort.
3. Adjust the Machine Settings :
- Each herd may have specific milking needs, so it’s essential to set the machine correctly :
- Select the Right Pulsation Rate : This is usually specified in the manual and can differ between different lactation stages of cows.
- Set the Milk Flow Rate : Adjust according to the cow’s milking speed and to prevent machine overload.
4. Attach the Milking Clusters :
- Connect the milking clusters to the cows following these steps :
- Positioning : Approach the cow calmly and position the milking cluster directly below the udder.
- Attachment : Carefully attach the teat cups to each teat, ensuring a snug fit without applying too much pressure.
- Check for Proper Seal : Ensure there is no leakage or improper positioning of the cups.
5. Monitor the Milking Process :
- While the machine operates, it’s important to monitor the process :
- Observe Cow Behavior : Ensure the cow is comfortable and relaxed.
- Observe the Milk Flow : While conducting the milking process, observe the flow rate of the milk and make sure that uniform flow is maintained.
6. Detach the Clusters :
- Once the cow has been milked, it’s time to detach the milking clusters, gently detach the milking cluster from the cow's udders upon completion of the milking process.
Maintenance :
- Clean the Milking Equipment : Rinse and sanitize all milking components, including the milking cluster and the storage tank, to prevent bacteria growth.
- Routine Inspections : Conduct daily checks for wear and tear, ensuring all components are functioning properly.
- Scheduled Maintenance : Ensure lubrication, parts replacement, and deep cleaning to keep machinery in peak condition
Applications
:- Commercial Dairy Farms : Automatic milking machine is an important pieces of equipment at dairy farms, because this machine automates the milking process and increases the milking efficiency.
- Reduced Dependence On Skilled Labor : The milking machine reduces the dependence on skilled labor for milking operations, making the task more efficient and cost effective and let's anyone take control over the milking operation without the need of having the required skillset to milk a cow.
- Improved Milk Quality and Hygiene : Using an automatic milking machine helps ensure cleaner milk by minimizing contamination risks that can occur during hand milking. The enclosed system reduces the likelihood of dirt, debris, or manure entering the milk, which is crucial for maintaining high-quality standards in dairy production.
Toolsvilla deals with various types of Dairy Equipment. Wide varieties of Milking Machines are used for milking cows & buffaloes
