Brand: COWFY

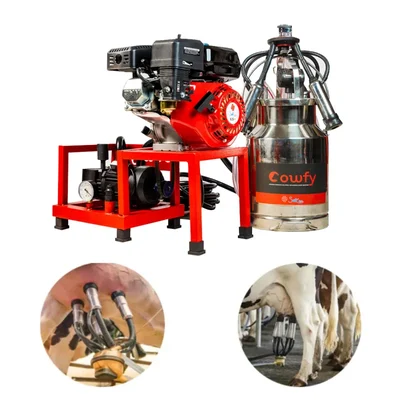

COWFY Fixed Single Bucket Maddog Milking Machine with GX200 Engine
SKU: JS-MM-20212129
MRP : ₹65852
Offer Price : ₹59000 (Including GST)
Get extra ₹885 Discount (On Checkout)
Delivery By: Dec 27 - Dec 29
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
COWFY Automatic Single Bucket Maddog Milking Machine
With 4-Stroke GX200 Engine, 6.5 HP
Motor Power : 0.55kW
Bucket Volume : 25 Litre
Country of origin: India
Description
The COWFY Single Bucket Milking Machine is a device designed to extract milk from cows. This machine automates the process of milking livestock and at the same time reduces both time and effort involved in milking them. The machine consists of teat cups which are attached to animal's udders, a vacuum system which creates suction to extract milk, set of pipes which connect the milking cluster with the milking bucket. The machine is equipped with a 6.5 HP 4 stroke engine which provides adequate power to the machine to function properly. This machine can effectively milk 16-25 cows in an hour, which makes it suitable for commercial usage like big dairy farms or for individuals who own large groups of livestock.
Features
:- User-Friendly Operation : Equipped with intuitive controls, the milking machine is designed for straightforward operation, reducing training time for new users.
- Efficient Milking Process : The integration of advanced technology leads to a faster milking process, reducing the time spent per cow while maximally extracting milk.
- Reduced Labor Intensity : By automating the milking process, these machines decrease the physical strain on operators and reduce the overall labor required for milking.
Specification
:- Product Type: Single Bucket
- Brand: COWFY
- Automation Grade : Automatic
- Engine : GX200
- Engine Power : 6.5 HP
- Displacement : 208 cc
- Engine Type : 4 Stroke
- Speed : 3600 RPM
- Fuel Tank Capacity : 3.5 Liters
- Engine Oil Capacity : 0.45 Liters
- Oil Consumption : 390/kWh
- Design Type : Fixed
- Productivity : 16-25 Cows/hour
Milking Group :
- Liner Type : Long Liner Rubber
- Bucket Type : Single Bucket (SS)
- Bucket Volume : 25 Liters
- Cluster Weight : 2250 Gr.
- Milk Claw Capacity : 240 cc
- Milk Hose : 225 mm (25 x 16 mm)
- Pulse Hose : 200 mm (14 x 7 mm)
- Milking Cluster : Single Cluster
Vacuum Pump :
- Motor Power : 0.55 kW
- Rotating Speed : 1450 RPM
- Voltage : 220 V
- Flow Rate : 200-230 L/min
- Palette Type : Graphite
- Palette Dimensions : 80 x 43 x 4.9 mm
- Tank Capacity : 18 mm
Toolsvilla deals with various types of Dairy Equipment. Wide varieties of Milking Machines are used for milking cows & buffaloes.
Usage
:1. Prepare the Milking Area :
- Ensure Cow Comfort : Use clean bedding and maintain a calm atmosphere.
- Check the Machine : Inspect all components for cleanliness and functionality to avoid malfunctions during milking.
2. Prepare the Cows for Milking :
- Inspection : Check cows for any signs of illness or discomfort.
- Hygiene : Clean the udder and teats thoroughly with warm water and a sanitizing solution to minimize the risk of infection.
- Calm the Animals : Keep the environment quiet and stress-free, and handle the cows gently to ensure their comfort.
3. Adjust the Machine Settings :
- Each herd may have specific milking needs, so it’s essential to set the machine correctly :
- Select the Right Pulsation Rate : This is usually specified in the manual and can differ between different lactation stages of cows.
- Set the Milk Flow Rate : Adjust according to the cow’s milking speed and to prevent machine overload.
4. Attach the Milking Clusters :
- Connect the milking clusters to the cows following these steps :
- Positioning : Approach the cow calmly and position the milking cluster directly below the udder.
- Attachment : Carefully attach the teat cups to each teat, ensuring a snug fit without applying too much pressure.
- Check for Proper Seal : Ensure there is no leakage or improper positioning of the cups.
5. Monitor the Milking Process :
- While the machine operates, it’s important to monitor the process :
- Observe Cow Behavior : Ensure the cow is comfortable and relaxed.
- Observe the Milk Flow : While conducting the milking process, observe the flow rate of the milk and make sure that uniform flow is maintained.
6. Detach the Clusters :
- Once the cow has been milked, it’s time to detach the milking clusters, gently detach the milking cluster from the cow's udders upon completion of the milking process.
Maintenance :
- Clean the Milking Equipment : Rinse and sanitize all milking components, including the milking cluster and the storage tank, to prevent bacteria growth.
- Routine Inspections : Conduct daily checks for wear and tear, ensuring all components are functioning properly.
- Scheduled Maintenance : Ensure lubrication, parts replacement, and deep cleaning to keep machinery in peak condition.
Applications
:- Commercial Dairy Farms : Automatic milking machine is an important pieces of equipment at dairy farms, because this machine automates the milking process and increases the milking efficiency.
- Reduced Dependence On Skilled Labor : The milking machine reduces the dependence on skilled labor for milking operations, making the task more efficient and cost effective and let's anyone take control over the milking operation without the need of having the required skillset to milk a cow.
- Improved Milk Quality and Hygiene : Using an automatic milking machine helps ensure cleaner milk by minimizing contamination risks that can occur during hand milking. The enclosed system reduces the likelihood of dirt, debris, or manure entering the milk, which is crucial for maintaining high-quality standards in dairy production.
Shipping Weight & Dimensions
