Brand: Allstar

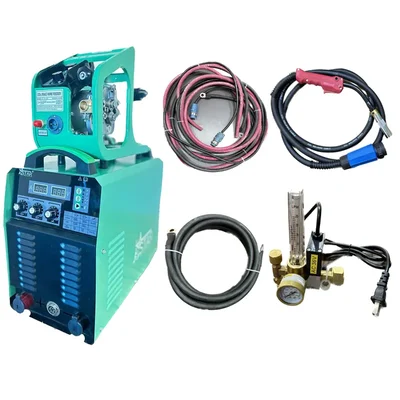

ALL Star MIG 400F Green Color GMAW Welding Machine With IGBT Inverter Technology
SKU: TI-AS-11873
MRP : ₹107798
Offer Price : ₹76999 (Including GST)
Get extra ₹1,155 Discount (On Checkout)
Delivery By: Dec 26 - Dec 28
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
ALL Star MIG 400F Green Color GMAW Welding Machine
Input Power 16 KVA
3 Phase
Country of origin: India
Description
ALL Star MIG 400F Green Color GMAW Welding Machine With IGBT Inverter Technology
Description :
- Gas metal arc welding (GMAW), sometimes referred to by its subtypes metal inert gas (MIG) and metal active gas (MAG) is a welding process in which an electric arc forms between a consumable MIG wire electrode and the workpiece metal, which heats the workpiece metal causing them to melt and join.
Features :
- IGBT Inverter Technology.
- Dual Digital Meters.
- Step less Voltage & Wire Feed Speed Setting.
- Electronic Choke adjustment for better arc control.
- Crater Voltage & Time Setting.
- Pre & Post Gas Flow Setting.
- Burn back Setting available.
- Compatible to Generator Power Supply.
- Power factor is 0.9
- IP 21S Compliance
Specifications :
- Model : MIG 400F
- Product Type : Welding Machine
- Brand : All Star
- Input Power Supply : 400 V ±15%, 50/60 Hz
- Required Phase : 3 Phase
- Input Power : 16 KVA
- Output Range : 16-40 V / 20-400 A
- Rated output : 400 A
- Duty Cycle : 60 %
- OCV (Open Circuit Voltage) : 70 VDC
- Suitable Electrode Holder : 1.2 mm Wire
- Dimensions : 650 X 320 X 545 mm
- Weight : 28 Kg (Approx.)
Wire Feeder :
- 24 VDC Servo Motor.
- Quick Release Drive Roll Pressure Adjustment Arm.
- 4 Roll All-Gear-Driven Drive Roll Carriers.
- Solid-state Speed Control & Brake Circuit.
- Remote Voltage Control.
Specifications of Wire Feeder :
- Input Power Supply : 24 V
- Wire Feed Speed : 1.5-25 m/min
- Wire Diameter Capacity : MS / SS / AL : 0.8 - 1.6 mm
- Dimension : 490 X 350 X 420 mm
- Weight : 11.5 Kg
Applications :
- Automobile E-Mobility Mfg.
- PEB (Pre-Engineered building) Industry
- Vessels Mfg.
- Ship Building
Accessories :
- Earthing Cable
- Welding Torch
- Gas Regulator
- Interconnection Cable
Specifications
:- Product Type: Mig
- Brand: Allstar
