Brand: Generic (Imported)

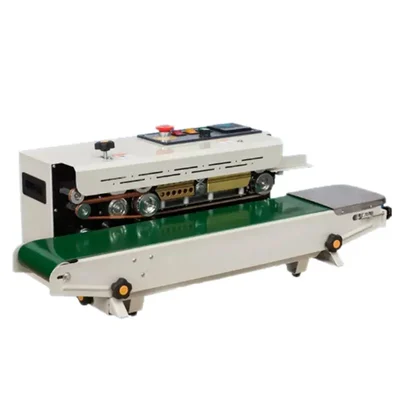

SMART Heavy Duty FR 900 MS Horizontal Band Sealer and Free Accessories
SKU: TI-SP-12083
₹11135 (Including GST)
Get extra ₹167 Discount (On Checkout)
Delivery By: Apr 25 - Apr 27
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
SMART Heavy Duty MS Horizontal Continuous Band Sealer (with Free accessories)
Mild Steel Material
6-12 mm Sealing Width and 0-12 mm/min Sealing Speed
Country of origin: China
Description
This horizontal continuous-band sealer has the ability to continually seal high graded pouches. The filled plastic bags are placed on a motorized conveyor belt that automatically moves the bag forward, and the packets or pouches are sealed. It has 2-3 kg of conveyor loading capacity and 0–20 m/min of sealing speed, so it can save labor time and effort. This machine is able to increase packaging against heavy production.
Features
:- Seal Bags on a Low To Medium-Volume Level.
- Easy-to-Use Control Panel Found on the Top Right Side of the Machine, Bags are Fed From the Right & Pulled Through the Sealer, Producing an 6-12 mm Wide Seal Along the Open End of the Bag.
- Easy conveyor height adjustment facility available on this particular machine.
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 17 kg
- Model No. : FR 900
- Controller Type : Digital
- Running Time : Max 16 hours (Non Stop)
- Voltage : 220 V
- Frequency : 50 Hz
- Power : 750 W
- Sealing Speed : 0-20 m/min
- Sealing Width : 6-12 mm
- Temperature Range : 0-300°C
- Conveyor Loading : 2-3 Kgs
- Material : Mild Steel
- Teflon Belt : High Quality from USA.
- Gear Material : Metal
Note :
- Suitable for High Graded Pouches, just like laminated Pouches.
- Conveyor belt color may vary.
Accessories
:- 2 Pieces Teflon Belt
- Conveyor Belt Extension
- Screw Driver
- Packaging Pouch Adjustment Bar
Usage
:- Preparation : Ensure the machine is placed on a stable, flat surface. Plug in the sealer and turn it on, allowing it to heat up for a few minutes.
- Setting Temperature : Adjust the temperature setting according to the type of material being sealed.
- Feeding the Material : Place the bags or pouches that need sealing on the conveyor belt. Ensure they are aligned properly for consistent sealing.
- Sealing Process : As the bags move through the sealer, they will be heated and sealed automatically. Monitor the process to ensure proper sealing without overheating.
- Cooling : After passing through the sealing area, allow sealed bags to cool down before handling them further.
Maintenance :
- Regular Cleaning : Ensure that the sealing area is cleaned regularly to prevent contamination and buildup of residues.
- Electrical Components Inspection : Periodically inspect electrical connections, wires, and components for any signs of wear or damage.
- Routine Testing : Conduct routine tests with sample materials to ensure that the machine is functioning correctly and producing quality seals.
Applications
:- Food Packaging : Ideal for sealing bags containing food products, ensuring freshness and preventing contamination.
- Pharmaceuticals : Used to seal packaging for medications and health supplements, maintaining product integrity.
- Cosmetics : Effective in sealing cosmetic products to ensure they remain uncontaminated and maintain their quality.
- Industrial Products : Suitable for packaging non-food items such as hardware components, textiles, and other consumer goods.
