Brand: Generic ( Made in India )
Heavy Duty 500 kg Capacity 360° Mini Crane with Electric Clutch Winch, 3 HP Copper Winding Motor,50 Meter Wire Rope
SKU: TI-E5-20461
MRP : ₹50000
Offer Price : ₹33000 (Including GST)
Get extra ₹495 Discount (On Checkout)
Delivery By: Dec 31 - Jan 2
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Heavy Duty 500 kg Capacity 360° Mini Crane with Electric Clutch Winch
Best Quality
Easy To Use
Country of origin: India
Description
The 360° Mini Crane Electric Hoist Structure is a device that has been made to function well with little upkeep. Users of the 360° Mini Crane Electric Hoist Structure receive magnetic lifting strength, including the ability for one side to expand and retract utilizing straightforward, user-friendly mechanics.
This machine is small and compact in size.
Easy to operate and can be used in smaller areas.

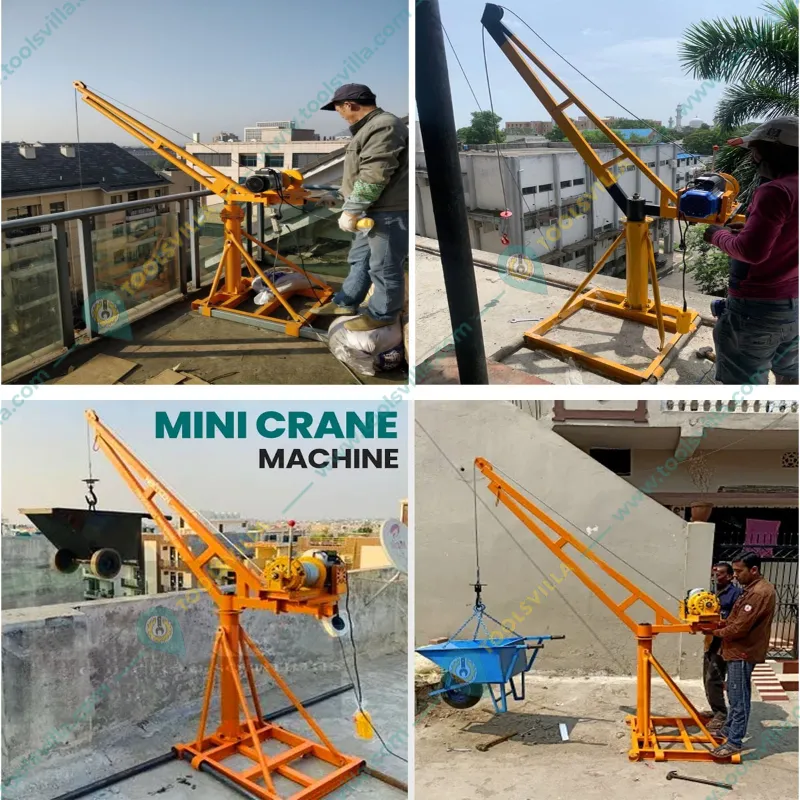

Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
Features
:- This machine is small and compact in size.
- Easy to operate and can be used in smaller areas.
- Strong and heavy motor.
- Heavy and Thicker wire rope.
Specification
:- Product Type: Floor Cranes
- Brand: Generic ( Made in India )
- Product Type : Lifting Mini Crane With Electric Clutch Winch
- Brand : Generic (Made In India)

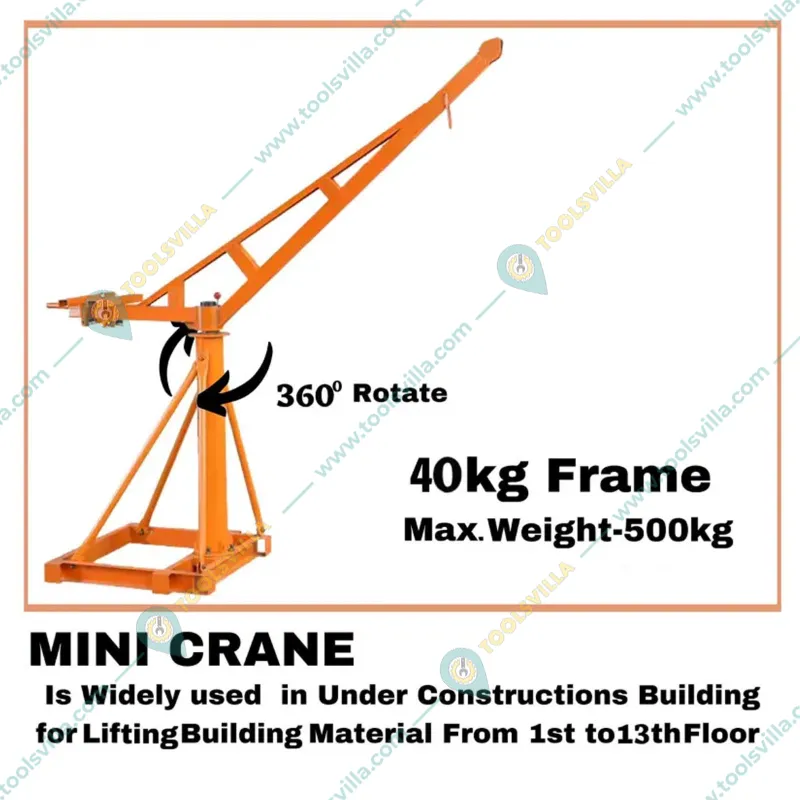

- Rotation Angle : 360°
- Phase: Single Phase
- Motor : 3 HP
- Winding : 100% Copper Winding
- Load Capacity : 500 kg
- Input Power : 2000 W
- Rated Voltage : 220V
- Clutch System : Yes
- Wire Rope Length : 50 meters
- Wire Rope Diameter : 8 mm
- Maximum Lifting Height : 50 meters
- Continuous Working Capacity : 2 hrs. (Approx.)
- Speed : 15-20 meter per mins
- Weight : 100-115 Kg (Approx.)

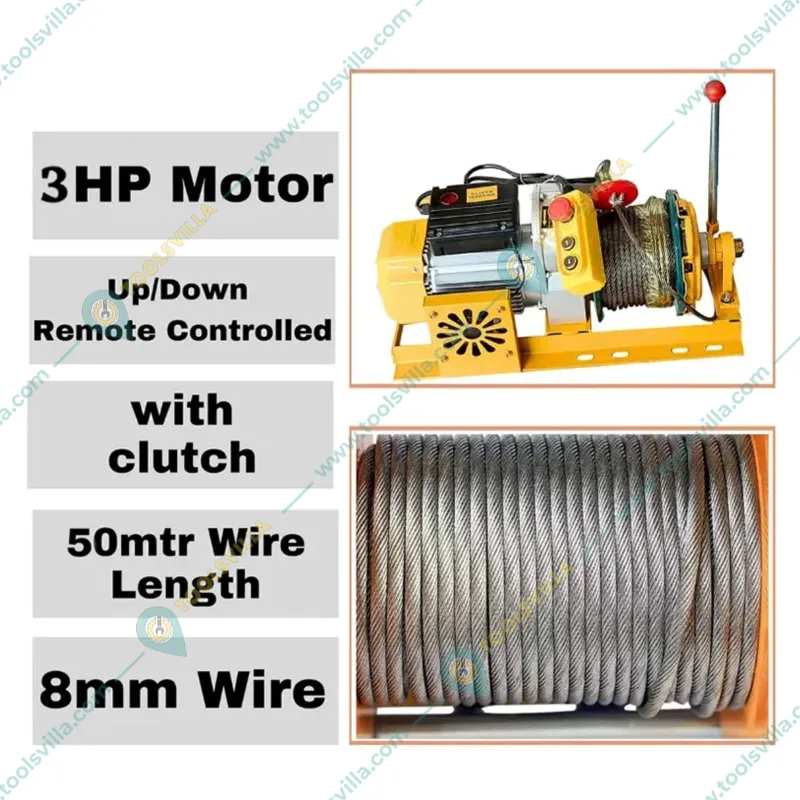

Specification ( Electric Clutch Winch ) :
- Product Type : Electric Winch Machine
- Brand : Generic (Made In India)
- Winding : 100% Copper
- Clutch System : Yes
- Motor power : 3 HP
- Phase : Single
- Voltage : 220 V
- Wire Rope Length : 50 meter
- Wire rope Thickness : 8 mm
- Lifting Capacity (Single/Double-Wire Rope) : 500/1000 kg
- Lifting Height Single Hook : 50 meters
- Lifting Height Double Hook : 25 meters
- Lifting speed (Single/Double -Wire Rope) : 15-20 meter per minute
- Continuous Working Capacity : 2 hrs. (Approx.)
Applications
:- Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
