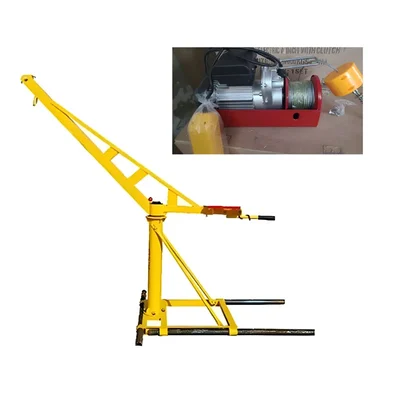

Harshyam Techno 150 kg Capacity Mini Crane With Electric Winch, 2 HP Copper Winding Motor, 20 meter & 6 mm Wire Rope

• Harshyam Techno 150 kg Capacity Mini Crane with Electric Winch, 2 HP Copper Winding Motor, 20 meter & 6 mm Wire Rope

• This machine is small and compact in size.

• Easy to operate and can be used in smaller areas.

• Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting Materials.


• Strong and heavy motor.

• 100% Copper winding motor.

• Heavy and Thicker wire rope.

• Product Type : Lifting Mini Crane

• Brand : Harshyam Techno

• Rotation Angle : 360°

• Phase: Single Phase

• Motor Power : 2 HP

• Winding : 100% Copper Winding

• Capacity : 150 Kg

• Rated Voltage : 220V

• Clutch System : Yes

• Maximum Lifting Height : 20 meter

• Continuous Working Capacity : 2 hrs. (Approx)

• Wire Rope Length : 20 meters

• Wire Rope Diameter : 6 mm

• Speed : 13 mtr per mins

• Weight : 100-115 Kg (Approx)


• Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.


• 1 x Crane

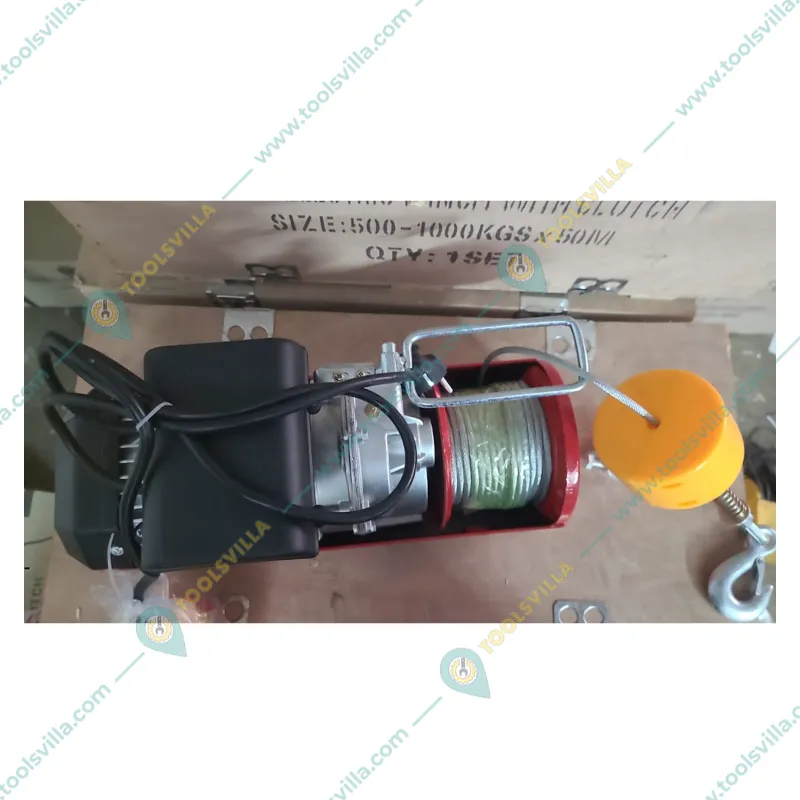

• 1 x Electric Winch

• 1 x Eye Hook

• 1 x Wire Rope

• 1 x Remote

• 1 x Voltmeter
