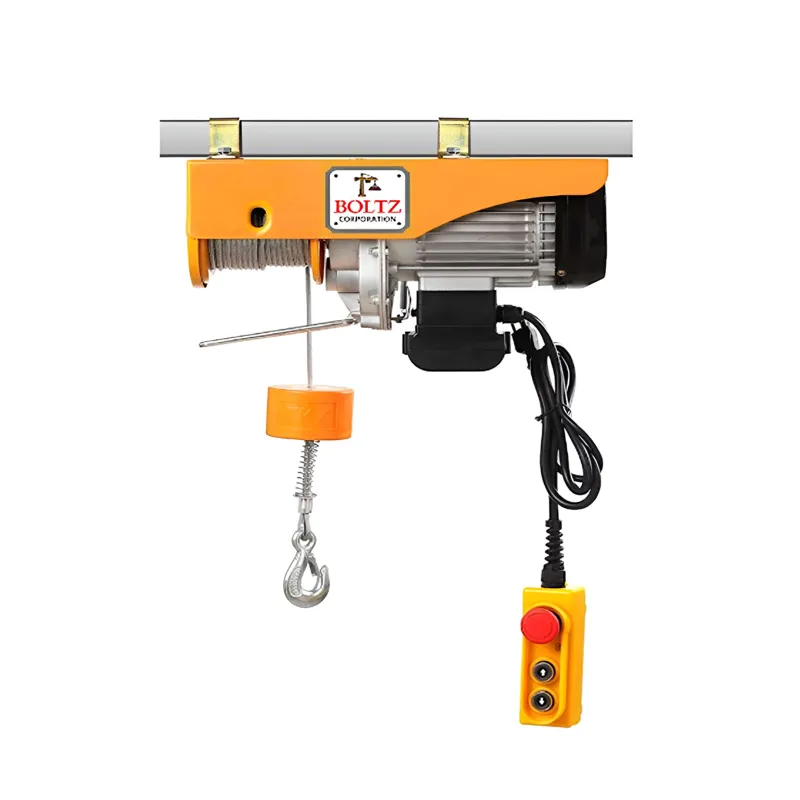

Boltz PA 1200 kg Electric Hoist With 2.5 HP 100% Copper Winding Motor, 8 mm Diameter & 20 Meter Long Wire Rope

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Boltz PA 1200 kg Electric Hoist With 2.5 HP 100% Copper Winding Motor

20 m Wire Rope, 8MM Diameter

220-240 V Rated Voltage

Country of origin: China

Description

Boltz PA 1200 kg Electric Hoist With 2.5 HP 100% Copper Winding Motor, 8 mm Diameter & 20 Meter Long Wire Rope

Description :

• The Boltz PA 600 kg Electric Hoist is a versatile and efficient lifting device designed for various applications, particularly in construction and automotive settings.

Features :

• With emergency stop switch
• Reinforced braking switch with position limit
• Protection class up to IP54
• With thermal prevention device
• Compact and small size design
• Long life span and high efficiency
• Applicable for most industry, business, handicraft industry and service industry
• Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane

Specifications :

• Product Type : Electric Hoist
• Model : PA-1200
• Brand : Boltz
• Phase : Single Phase
• Motor Power : 2.5 HP
• Working : Remote Controlled
• Lifting Height : Single Hook-20 m/Double Hook-10 m
• Lifting Speed : Single & Double Hook : 18 m/min
• Rated Voltage : 220-240 V
• Frequency : 50Hz
• Wire Rope Length : 20 m
• Wire Rope Dia. : 8 mm
• Lifting Weight : Single Hook-600Kg, Double Hook-1200Kg
• Continuous Working Capacity : 2 hours (Approx)

Application :

• Warehouses, automotive servicing , machine shops, manufacturing facilities, factories ,building sites and railroad construction.


In The Box :

• 1 Electric Hoist.
• 1 Electric Hoist Remote.
• 1 Eye Hook.
• 1 Pulley Hook.
• 8 mm Wire Rope.
• Mounting Case
• Nutbolts and Clamps

Note :

• All these accessories are assembled with the machine.
• The videos shown are for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.


Specifications

 :

• Product Type: Electric Wire Rope Hoist
• Brand: Boltz
• Power : 2.5 hp
• Weight (Approx.) : 26 kg
• Load Capacity : 1200 kg
