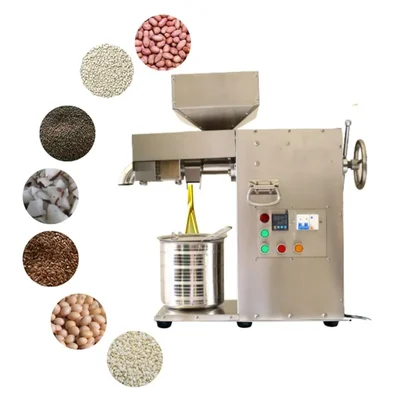

Commercial Multi Oil Seeds Press/Expeller Machine 2500W, Up To 20 kg per hr with Free Accessories and 1 Year Warranty
4.0 star
SKU: PD-VGI-20223675
₹128899 (Including GST)
Get extra ₹1,933 Discount (On Checkout)
Delivery By: Feb 16 - Feb 18
Qty:
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
Short Description
Commercial Oil Extraction/Expeller Machine
2500W Rated Power
up to 20 kg per hr Capacity
Country of origin: India
Description
The Commercial Multi Oil Seed Press machine is specially used for extracting oil from various different types of edible oil seeds. The machine is designed to deliver maximum output and less residue and alongside that it is also cost and energy efficient. This machine is equipped with a 2 HP motor with a working capacity of 20 kg per hour and is made using stainless steel material which adds up to the durability and makes it food safe. The raw material i.e. the seeds are put into the hopper area from there they enter the extraction area where with the help of a rotating screw the oil extraction takes place. The extracted oil comes out from the oil outlet whereas the left residue comes out from another outlet.
Features
:
User-Friendly Operation : Designed with intuitive controls that allow operators to easily manage the extraction process without extensive training.
Temperature Control : Equipped with temperature regulation systems to maintain optimal conditions during extraction, which helps preserve the quality and nutritional value of the oil.
Nutrient Preservation : Oil press machines utilize squeezing technique without using any sort of additional chemicals, which helps retain the natural nutrients and flavors of the oil, ensuring a healthier end product.
High Oil Extraction Efficiency : The machine is capable of extracting oil from the material with high efficiency, resulting in minimal waste and maximum yield.
Specification
:
Product Type: Oil Processing Machine
Brand: Generic ( Made in India )
Material : Stainless Steel
Motor Power : 2 HP
Motor Speed : 90 RPM
Wattage : 2500 W
Phase : Single
Voltage : 220-240V
Power Consumption : 2 unit/hr
Working Capacity : Up to 20 Kg/Hr (Depending on raw material)
Dimensions : 68 x 33 x 60 cm
Weight : 47.7 Kg (Approx.)
Required temperature for grinding the following materials :
GROUNDNUT : 180 - 220 °C
SESAME : 220 - 250 °C
COCONUT : 50 - 150 °C
ALMOND : 200 - 220 °C
MUSTARD : 180 - 200 °C
SUNFLOWER : 200 - 220 °C
OLIVE : 200 - 220 °C
WALNUT : 80 - 100 °C
FLAX : 80 - 100 °C
NEEM : 180 - 200 °C
Accessories
:
Oil Can
Power Cable
Strainer
Gloves
Brush
Warranty Parts : Motor only with T&C Apply
Note :
Covered in Warranty : Manufacturing Defects
Not Covered in Warranty : Physical Damage
Suitable for extracting oil from edible seeds only.
Usage
:
Step 1: Preparation
Choose Your Seeds or Nuts : Determine which type of oil you want to extract based on your cooking needs and preferences. Common choices include sunflower seeds, sesame seeds or nuts like walnuts and almonds.
Clean the Seeds/Nuts : Rinse them to remove any dirt or contaminants. Ensure they are completely dry before proceeding, as moisture can affect the oil extraction process.
Preheat the Machine : Some oil press machines require preheating for optimal oil extraction. Check your user manual to see if this step is necessary.
Step 2: Setting Up the Machine
Assemble the Machine : Ensure all parts of the oil press machine are correctly assembled. This usually includes attaching the oil collector and checking for proper alignment.
Set the Temperature : Depending on the type of seeds or nuts you are using, you may need to adjust the temperature settings. Higher temperatures can increase extraction rates but may also affect the oil’s flavor and nutritional quality.
Step 3: Oil Extraction
Add the Seeds/Nuts : Pour the prepared seeds or nuts into the hopper of the machine. Do not overload the machine, as this can impede the extraction process.
Start the Machine : Turn on the oil press machine. It will automatically start the extraction process, squeezing the oil out of the seeds/nuts.
Monitor the Process : Keep an eye on the machine as it operates. Most automatic machines will allow you to see the amount of oil being extracted and provide alerts for any issues.
Step 4: Collecting the Oil
Stop the Machine : Once the oil extraction process is complete, turn off the machine. This usually happens when the seeds or nuts have been fully pressed.
Collect the Oil : Carefully collect the freshly extracted oil from the container. It’s a good idea to use a funnel to avoid spills.
Store the Oil : Transfer the oil into a clean, airtight glass or metal container. Store it in a cool, dark place to preserve its quality.
Step 5: Cleaning the Machine
Disassemble the Parts : After the machine has cooled down, disassemble it according to the manufacturer’s instructions.
Clean Thoroughly : Use warm, soapy water to clean the parts. Avoid using harsh chemicals that could linger and contaminate future batches of oil.
Dry Completely : Ensure all parts are thoroughly dried before reassembling or storing the machine.
Maintenance :
Periodic Deep Cleaning : In addition to regular cleaning, perform a deep clean every few months. This involves disassembling the entire unit and cleaning each component meticulously.
Use Appropriate Lubricants : Choose food-grade lubricants to ensure safety during oil production.
Screws and Fasteners : Ensure they are tight to prevent vibrations that can lead to mechanical failure.
Heating Elements : Check for discoloration or damage, as these are indicators of overheating.
Listen for Unusual Noises : Grinding or squealing sounds can indicate a problem that requires immediate attention.
Check for Consistent Oil Quality : If you notice a significant change in oil quality or yield, it may be time for a deeper inspection or professional servicing.
Applications
:
Production of High-Quality Edible Oils : Cold pressing is used to extract oils from seeds like flaxseeds, sunflower seeds, sesame seeds, and pumpkin seeds. These oils are known for their unique flavor profiles and nutritional benefits, including omega-3 fatty acids, vitamin E, and minerals.
Small-Scale Oil Production : Cold oil press machines are becoming increasingly popular for home use, allowing individuals to produce their own fresh, high-quality oils as well as these machine can also be used for small scale businesses.
Health and Wellness : Cold-pressed oils are often used as dietary supplements due to their high concentration of nutrients and antioxidants. These oils can support heart health, brain function, and overall well-being.
Culinary Applications : Cold-pressed oils are prized for their delicate flavor and high smoke point, making them ideal for cooking and baking. They can enhance the taste of dishes and provide a healthier alternative to refined oils. Their unique flavor profiles and nutritional benefits add depth and complexity to dishes.
