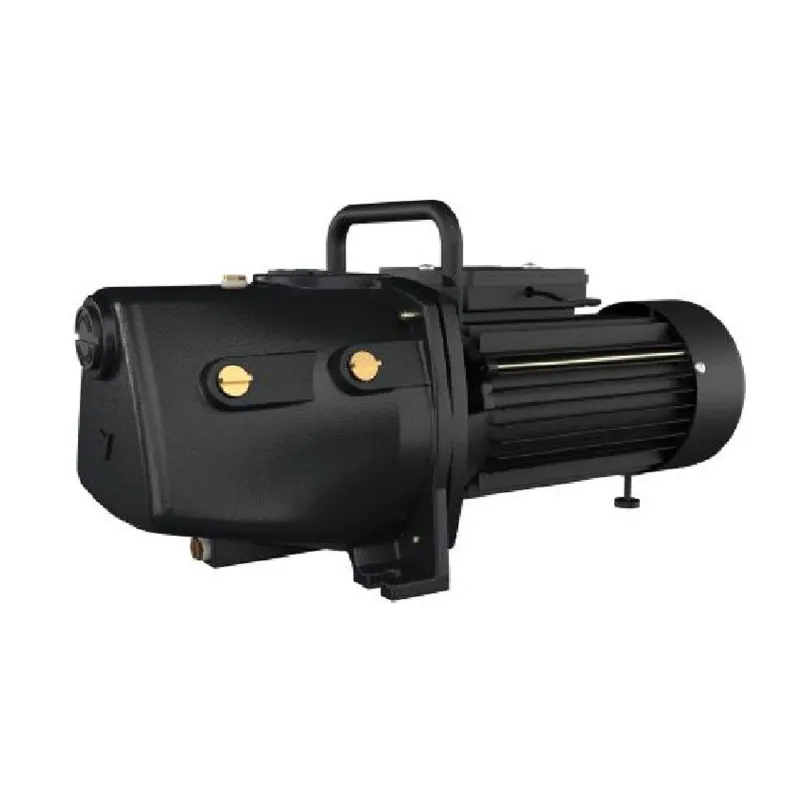

Kirloskar 1 Hp Single Phase Copper Winding Shallow Well Pump, 36m Head, 25X25mm (LIFTER 125) - 1 Year Warranty

Features

• Superior Performance : Up to 260% Higher discharge as compared to competition in same class will lead to save up to 72% time to fill the 2000 liters overhead tank.
• High Suction Lift : The pump has suction lift capacity up to 8.5 meters with high head, allowing to pump water at high volumes for a variety of applications.
• High Grade F-Class Insulation : Robust design to withstand higher temperatures, which ensure the reliability, safety of equipment and enhances the life.
• Cathodic Electro Deposition (CED) Coating : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. Hydraulic parts of Kirloskar pumps are CED coated.
• Wide Voltage Design : The motor is designed to withstand wide voltage variation from 160 to 240 volts and reduces motor burning in case of low/high voltage.
• High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
• Enhanced Grip and Portability : A handle attached to the pump allows user to carry the pump anywhere, adding to its portability and convenience of use.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
• Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians

Specification

• Model No. : LIFTER 125
• Product Type : Shallow Well Pump
• Brand : Kirloskar
• Power : 0.75 kW
• Electricity Connection : Single Phase
• Rated Voltage : 160 to 240 Volt, 50 Hz AC Power Supply
• Pipe Size (Suction X Delivery) : 25X25 mm
• Head Range : 20 to 36 Meter (65.6 to 118 Feet)
• Discharge Range : 4600 to 1620 LPH (77 to 27 LPM)
• Winding Material : Copper
• Speed : 2800 RPM
• No Of Stages : 1
• Dimension (LxWxH) : 180 X 230 X 445 mm

Applications

• Pumping water from shallow wells and tanks
• Domestic water supply
• Lifting water to apartments and houses
• Lawn sprinklers and water transfer
