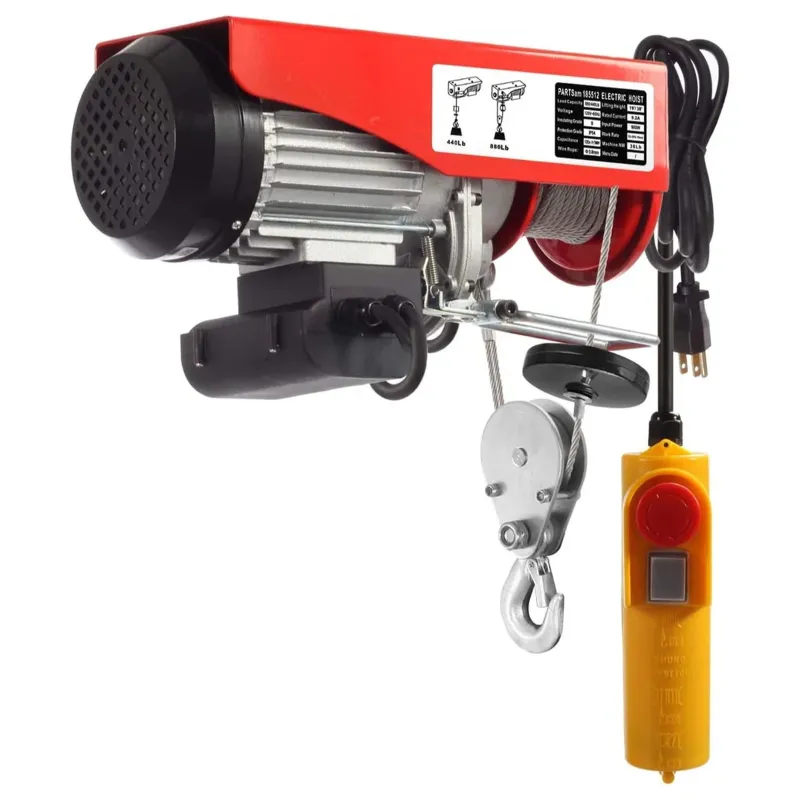

Heavy Duty 500 kg Electric Hoist with 1.5 HP Copper Winding Motor, 5 mm diameter & 30 meter long Wire Rope

• Electric hoists are a type of material handling tool used for raising, lowering, and moving goods. They have an electric motor that propels them overhead. Electric chain hoists and electric wire rope hoists are the two primary varieties of electric hoists.
• The electric hoist's 500 kg load capacity makes it simple to lift compact engines, transmissions, or building supplies. It features a steel hook with a secure clasp and supports two lifting modes. The Single line can move up to 250 kg and the double line can move up to 500 kg.

Features

• With an emergency stop switch
• Reinforced braking switch with position limit
• Protection class up to IP54
• With a thermal prevention device
• Compact and small size design
• Long life span and high efficiency
• Applicable for most industry, business, handicraft industry and service industry

Specification

• Product Type : Mini Electric Hoist

• Brand : Generic
• Phase : Single Phase
• Motor Power : 1.5 HP
• Input Power : 1050 W
• User Ways : Double Hook
• Motor winding : Copper

• Working : Remote Controlled

• Rated Voltage : 220 V, 50 Hz
• Single Hook Load Capacity : 250 kg
• Double Hook Load Capacity : 500 kg
• Hoisting speed : Single Hook & Double Hook - 15 m/min
• Hoisting Height : Single Hook-30m, Double Hook- 15m
• Wire Rope Diameter : 5 mm

• Wire Rope Length : 30 Meter
• Continuous Working Capacity : 2 hours (Approx.)
