Brand: Generic (Imported)
Electric 53 x 10 Inch Conveyor Belt Machine for Inkjet Printer
SKU: JS-AP-20211677
MRP : ₹26000
Offer Price : ₹22300 (Including GST)
Get extra ₹335 Discount (On Checkout)
Delivery By: Jan 30 - Feb 1
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

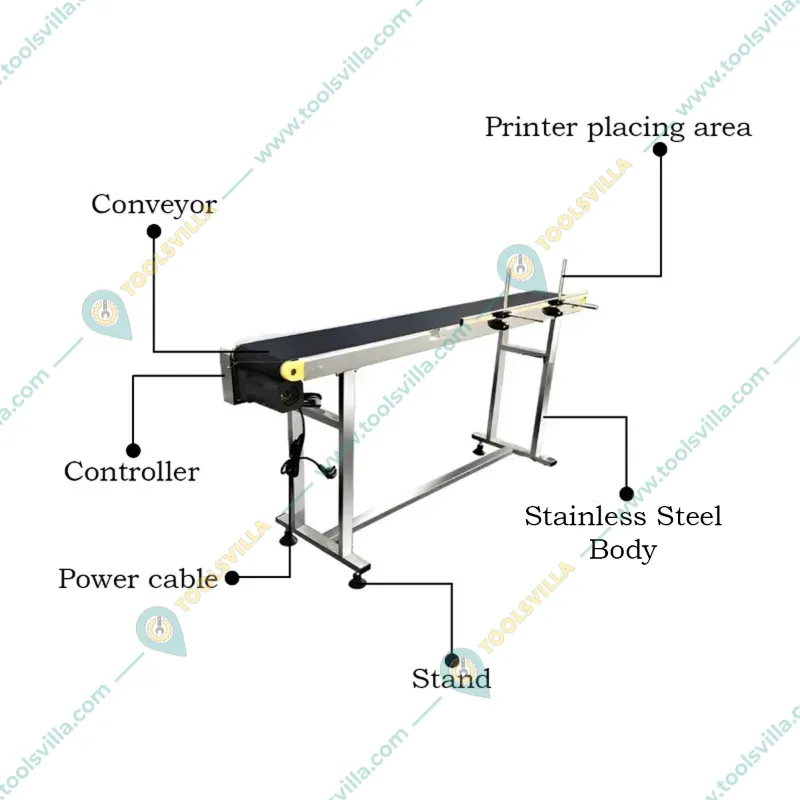

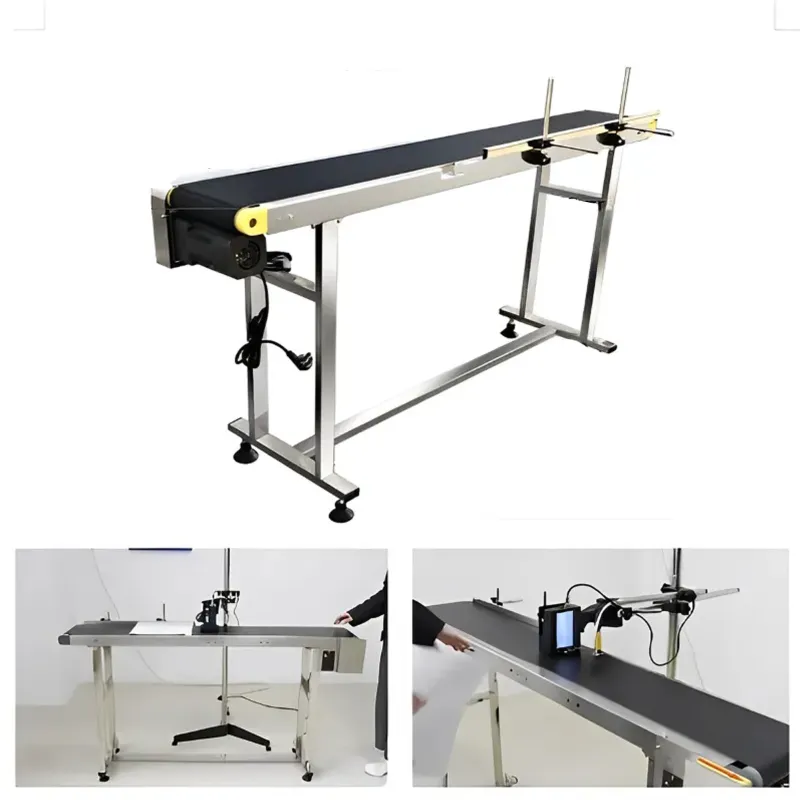

Electric 53" x 10" (134.62x25.4cm) Conveyor Belt Machine for Inkjet Printer
Power 80 W1 Kg loading capacity
Country of origin: China
Description
This conveyor system is a fast and efficient mechanical handling apparatus for automatically transporting loads and materials within an area. This system minimizes human error, lowers workplace risks and reduces labor costs — among other benefits. They are useful in helping to move bulky or heavy items from one point to another. A conveyor system may use a belt, wheels, rollers, or a chain to transport objects.
Features
:- The machine helps to make product ready to pack by forwarding the package or material to another end sometimes with printing if printer is attached with this machine.
- Reasonable structural design and simple and quick replacement of easily-worn parts can realize the combination of functions according to the options of the user.
- This machine is suitable for automatic printer to be attached for automated date, expiry, batch code, MRP etc.
Specification
:- Product Type: Conveyor
- Brand: Generic (Imported)
- Model : FH - SA200
- Body Material : Stainless Steel
- Voltage : AC – 220V
- Frequency : 50Hz
- Power : 80W
- Max Loading Capacity : 1 Kg
- Conveyor Size (L x W x H) Size : 1360 x 260 x 740 mm
- Size of Carton Box (L x W x H) : 1440 x 360 x 350 mm
- Weight : 19 Kg (Approx.)
Toolsvilla deals in various types of Packaging Machinery. Wide variety of Batch Coding Machine can be used to print notes such as Batch Number, Date, Expiry Date, MRP on the plastic bags, in the food and pharmaceutical industries.
Usage
:Setup :
- Place the conveyor belt : Ensure the conveyor belt is properly positioned, aligned, and secured in the printing area where it can move items seamlessly.
- Connect the machine : Plug the machine into a power source and connect the inkjet printer to the conveyor if required.
Load Items :
- Place the items or packaging to be printed onto the conveyor belt, ensuring they are aligned properly to travel smoothly across the printing area.
Adjust Speed :
- Set the conveyor speed using the control panel, adjusting it based on your print job's requirements.
Position Inkjet Printer :
- Align the inkjet printer over the conveyor path so that the print head is positioned to print onto the item as it moves along the belt.
Start the Printing Process :
- Activate both the conveyor belt machine and the inkjet printer.
- The items will move along the belt while the inkjet printer prints desired information (like barcodes, dates, or batch codes) onto them.
Monitor and Adjust :
- Monitor the print quality and adjust the speed, alignment, or inkjet settings if necessary to ensure optimal results.
Finishing :
- Once printing is complete, the printed items will move off the conveyor belt, ready for collection or further processing.
Maintenance :
- Clean the conveyor belt to remove any dust, ink residues, or debris that could affect smooth movement. Use a soft cloth or brush with mild detergent and water.
- Inspect the conveyor belt for proper tension and alignment. Adjust it if necessary to ensure the belt runs smoothly and the items stay aligned during transport.
Applications
:- Logistics : Shipping labels or tracking information on boxes and packages in warehouses.
- Automated Printing : High-speed continuous printing on products, reducing manual labor and increasing throughput for large volumes of goods.
- Packaging Industries : Automating the printing of dates, batch numbers, and barcodes on products or packaging as they move along the conveyor belt.
- Manufacturing : Printing serial numbers, logos, or product details on various items like electronics, food packaging, and consumer goods.
