Brand: HPM

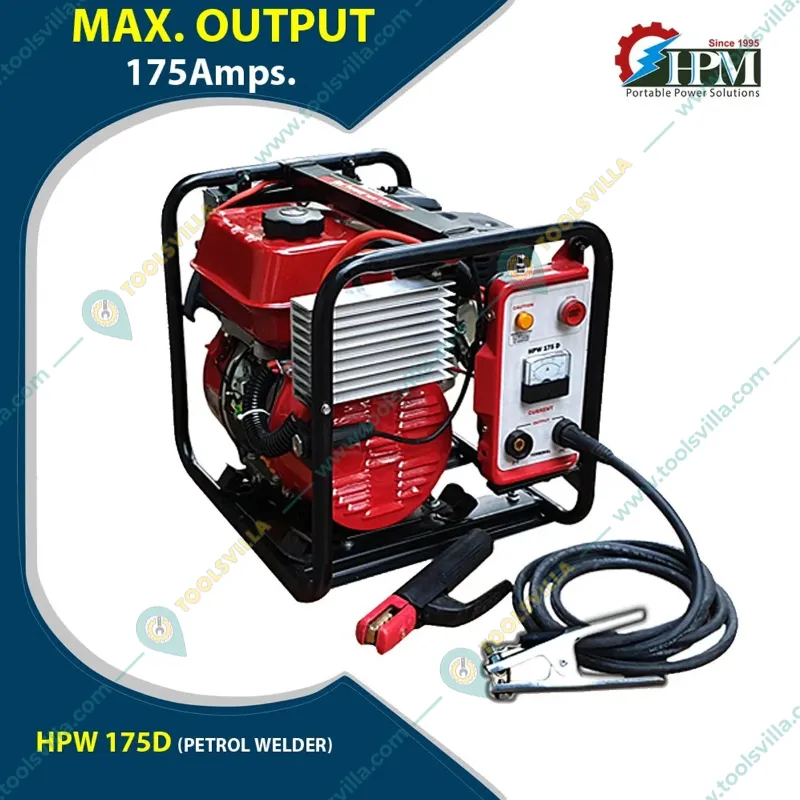

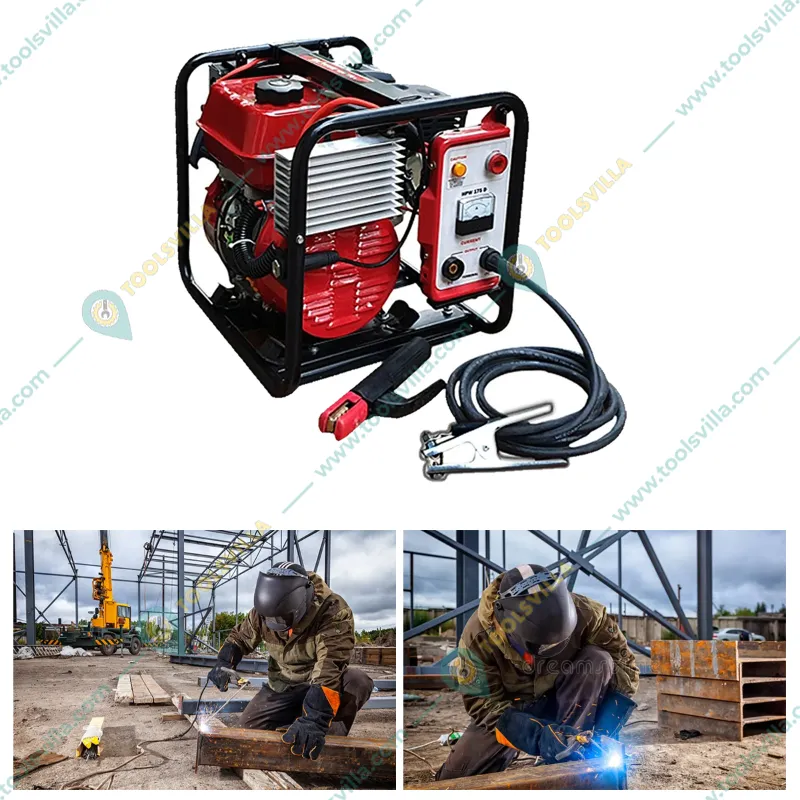

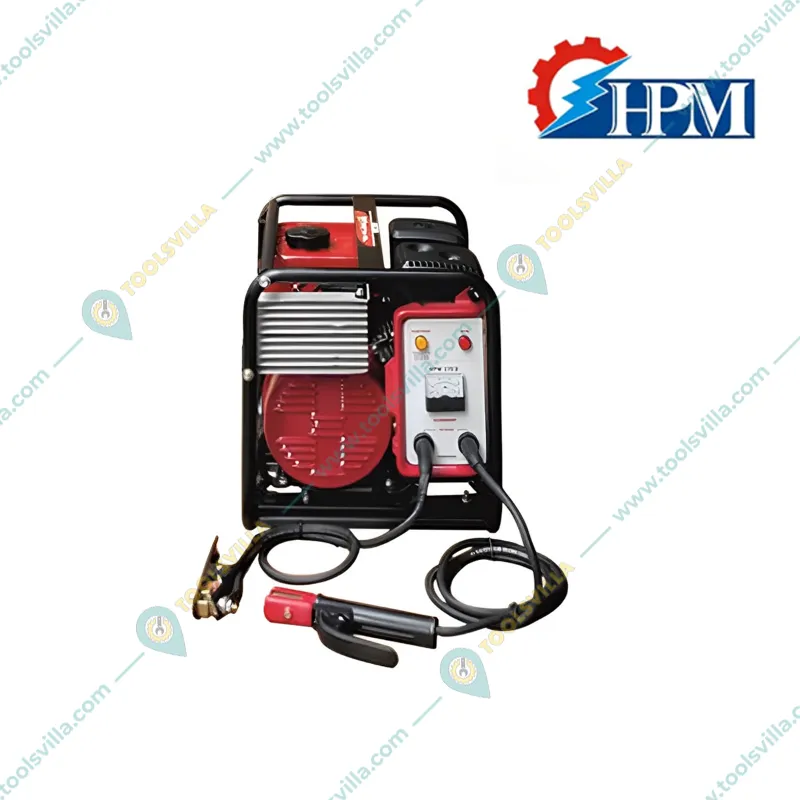

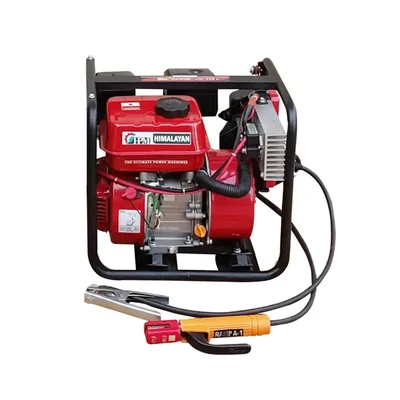

HPM 175 Amp Recoil Start Petrol Run Arc Welding Generator Machine(HPW 175 D)
SKU: DK-HP-2088
MRP : ₹81130
Offer Price : ₹49989 (Including GST)
Get extra ₹750 Discount (On Checkout)
Delivery By: Jan 7 - Jan 9
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 175 Amp Recoil Start Petrol Run Arc Welding Generator Machine
20V to 30V Working Voltage
75 to 160 Amps Current Regulation
2.5 mm to 4 mm Maximum Electrode Diameter
AC Output Box Not Come With The Machine
Country of origin: India
Description
The lightest and most affordable arc welding generator in the world is driven by HPM. This welding generator is appropriate for Light and Medium General Purpose Structural Welding up to 4mm Electrode.

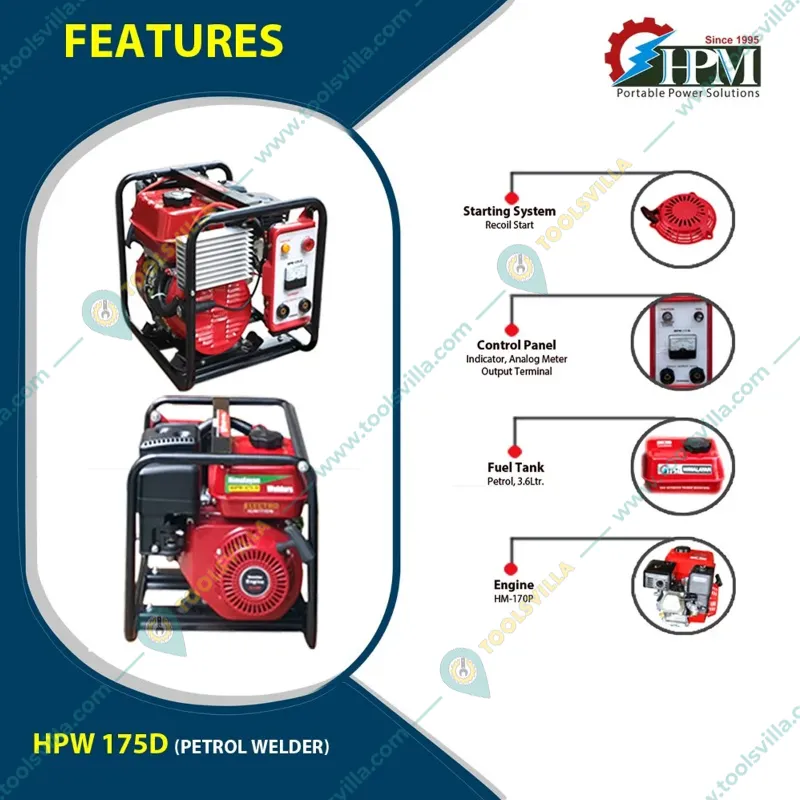

Features
:- Overload Protection
- Power Indicator
- Ampere Meter
- Engine Oil Protection
- World’s Ultra Light & Low Cost Arc Welding
Specification
:- Product Type: Welder Generator
- Brand: HPM
- Weight (Approx.) : 27 kg
- Model No : HPW 175 D
- Dimensions (L x W x H) : 440 x 385 x 420 mm
DC Welding :
- Maximum Output (Duty Cycle 60%) : 175 Amps
- Working Voltage : 20-30 V
- Open Circuit Voltage : 50 Volt (Maximum)
- Current Regulation : 75 Amps to 160 Amps
- Rectifying Mode : 3 phase - Bridge Rectifier (Full Wave)
- Maximum Electrode Diameter : 2.5 mm to 4 mm
Engine :
- Model : HM 170 P
- Engine Type: Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
- Maximum Power : 6.5 HP
- Bore x Stroke : 70 x 54
- Displacement : 208 cc
- Starting System : Recoil Start
- Ignition System : TCI (Transistor Control Ignition)
- Fuel : Standard Petrol
- Fuel Tank Capacity : 3.6 Ltr
- Fuel Consumption : 1 Ltr/ Hr
- Continuous Operating Hour : 3.5 Hr
- Lube. Oil Capacity : 600 ml
- Lubricating Oil Consumption : 2.5 gm/Hr
Panel & Other Features :
- Aux. AC Output 230 Volt - 50 Hz : Invertor 1.5 KVA (Optional)
- Overload Protection : Yes
- Power Indicator : Yes
- Ampere Meter : Yes
- Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.

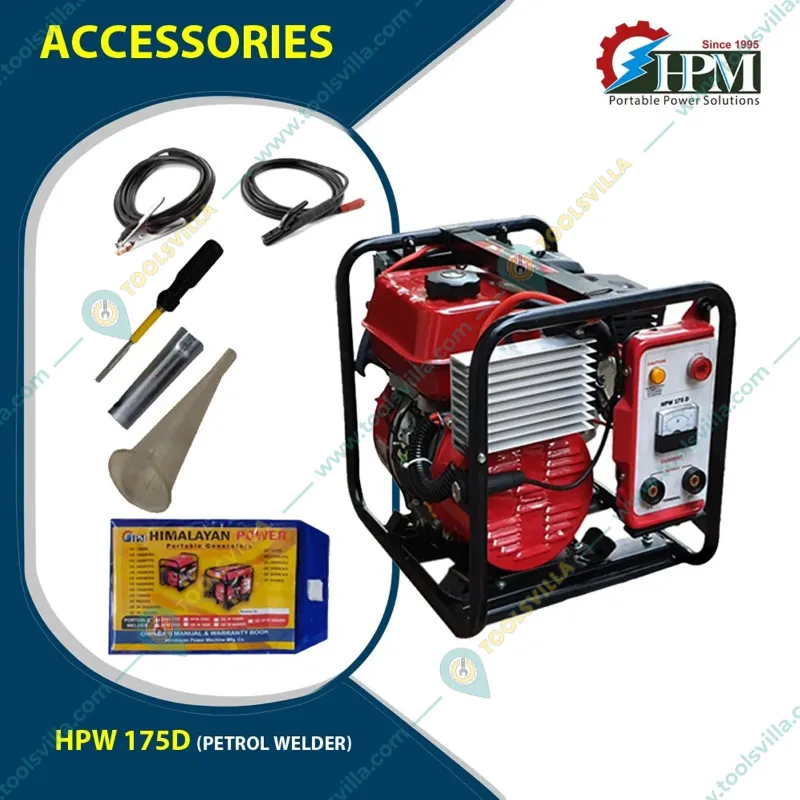

Accessories
:- 1 Set Tool Kit
- 1 Set Welder Holder
- 1 Set Earthing Clamp with 3Mtr. Cable
- 1 pc Oil Funnel
- 1 Owner's Manual
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 44 cm X 38.5 cm X 42 cm
Package Weight
:
28.00 Kg
