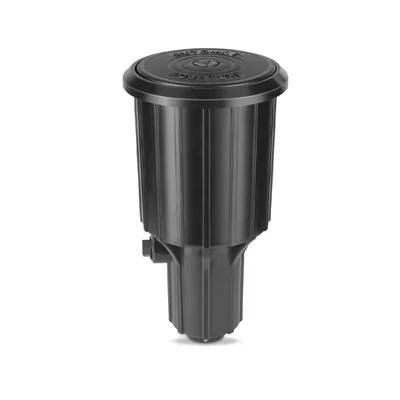

Automat HT405 Aquaturf Pop up Impact Sprinkler with Heavy Duty Plastic Case

Features

• Interchangeable, bayonet color coded nozzles.
• Heavy-duty plastic case with reinforced ribbed design for excellent gripping.
• Adjustable to full-circle or part circle.
• Diffuse screw for fine droplets & throw control
• Double-weighted arm for balance and smooth rotation
• Sand resistant pressure activated wiper seal
• Excellent distribution uniformity.
• Having provision of bottom inlet filter.

Specification

• Model No. : HT-405
• Diameter: 22.5-25.5 mtr.
• Operating pressure: 2.0-4.0 kg/cm².
• Bottom Inlet connection : ½ Inch
• Nozzles available : 2.9, 3.2, 3.5 & 4.0 mm
• Spacing between sprinkler : upto 12m for excellent uniformity
• Trajectory Angle: 25°

Applications

• Used in landscaping, public parks and public lawn irrigation

Usage

• Make sure it is securely connected and pushed into the ground so water doesn't leak
•  Then turn the tap on to make sure the sprinklers are spraying in the right direction
•  If the sprinklers need adjusting, pull up the centre of the pop-up and adjust the top ring so it sprays water where you want to water
