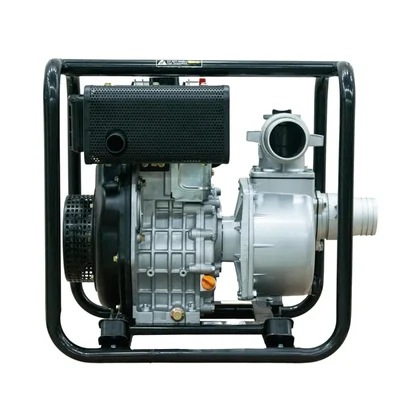

RICO ITALY 3 inch (7.62 cm) Portable Water Pump ensures smooth operation and reliable performance. It is a self-priming pump which makes it easy to start and operate without the need for external priming. It promotes efficient water flow rates. This water pump is used to provide high irrigation efficiency by supplying proper amount of water to every area of the field to gain speed in cultivation. Perfect for various water transfer tasks, such as irrigation, draining pools, and handling water emergencies.
Features
:
Lightweight design which makes it easy to carry and move around as needed
Portable Compact Open Structure, offering convenience and versatility for different usage scenarios
Strong frame construction, providing durability and stability during operation
Specification
:
Brand: Generic (Imported)
Power : 6.5 hp
Fuel Used : Diesel
Displacement : 296 cc
Stroke : 4
Weight (Approx.) : 17 kg
Material : Metal
Inlet / Outlet Size : 3 Inch (7.62 cm)
Pump Lift : 90 ft
Suction Head: 10 m
Flow Rate : 1200 L/Min
Dimension (cm) : 70x40x40
Accessories
:
Rubber Feet's
Spanner Set
Foot Valve
Aluminum Coupler
Washer
Clamps
Oil Measuring Can
Applications
:
Use in agriculture fields, irrigation, farming land, gardening, farm-houses, fountains, drain water from a basement or shallow flooded areas.
Usage
:
Before You Start: Check whether all parts of the diesel engine are normal, whether all accessories are connected reliably, and eliminate abnormal phenomena. Starting the Engine:
Engine Start: The diesel engine is started, providing power to rotate the pump shaft.
Impeller Rotation :The rotating shaft turns the impeller within the pump housing, which has curved blades designed to create centrifugal force.
Water Intake:As the impeller spins, it creates a low-pressure area at its center, causing water to be drawn into the pump through the inlet pipe.
Centrifugal Force: The water is then accelerated by the impeller blades, throwing it outwards against the pump housing, generating high pressure.
Water Discharge: The pressurized water is pushed out of the pump through the outlet pipe, delivering it to the desired location.
