Brand: Neptune

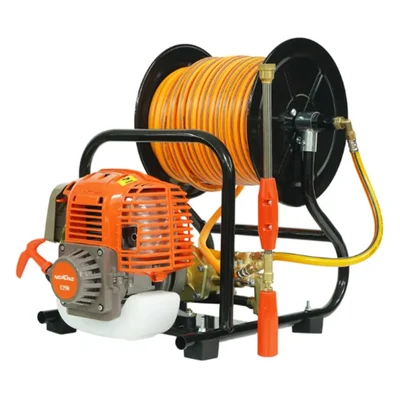

Neptune PW-768 WH 4 Stroke Portable Power Sprayer With Hose Reel, 15 Meter Hose Pipe & Spray Gun
SKU: IS-SD-20236322
₹13300 (Including GST)
MRP : ₹15000
Get extra ₹200 Discount (On Checkout)
Delivery By: Apr 4 - Apr 6
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Power Pressure Sprayer of 4 Stroke Engine with 50 meter Hose Pipe
7000 RPM Speed
35 CC Displacement
Country of origin: China
Description
Neptune's Power Pressure Sprayer has a powered 4 stroke petrol engine that offers excellent spraying application. It can be widely used for disease prevention and pest control in large crop fields and orchards or disinfection in city and countryside
Features
:- This power sprayer is powered by a 35cc four-stroke petrol engine.
- High-pressure piston pump to generate optimum pressure for achieving long horizontal & vertical spray range
- It is designed with 900ml petrol engine along with an integrated 100ml engine oil tank.
- With big bottom frame and low center of gravity, the machine has good stability.
- Protective setup for the high-temperature parts to ensure the user is safe in working.
- Also, recoil ignition makes the starting easy.
Specification
:- Brand: Neptune
- Power : 1 hp
- Stroke : 4
- Weight (Approx.) : 19 kg
- Model No : PW-768 WH
- Displacement : 35 CC
- Speed : 7000 RPM
- Fuel Tank : 900 ml
- Fuel consumption : 500 ml / hour
- Engine Oil Capacity : 100 ml (20W40)
- Water Output : 12-14 LPM
- Sparing Range (Vertically & Horizontally) : 20-25 Feet (6-7.5 Meter)
- Pump Oil : Gear Oil 100 ml
- Weight : 18 Kg (Approx.)
Accessories
:- Suction & Overflow pipe
- Strainer Filter
- Delivery hose pipe 15 meter
- Spray Gun
- Manual
- Tool kit
Usage
:Before you start :
- Read the Manual properly and Wear Personal Protective Equipment.
- Ensure the air filter is clean and the tank is securely closed.
Starting the machine:
- Fill the tank with petrol (No 2T oil needed) there is a separate chamber for pouring the engine oil.
- Press the fuel injection bulb 3 to 5 times until you see fuel flowing through the lines.
- Adjust the pump’s pressure knob to its lowest setting.
- Pull the recoil starter grip until you feel resistance, then pull briskly to start the engine.
- Gradually open the choke as it warms up if it was initially closed.
How to stop the machine:
- Move the throttle control to the “OFF” position or turn off the ignition switch. This will stop the engine from running.
Applications
:- Pest Control: Effective for spraying pesticides on various crops, including cotton, vegetables, and fruit trees, to manage pest populations.
- Disease Management: Used to apply fungicides and other protective chemicals to prevent crop diseases.
- Fertilizer Application: Facilitates the delivery of liquid fertilizers directly to plants, enhancing nutrient uptake.
- Sanitation: Employed in urban settings for disinfecting public spaces and controlling health risks associated with pests.
- Versatility: Suitable for both small and large areas, making them adaptable for various agricultural tasks
