Brand: Generic (Imported)

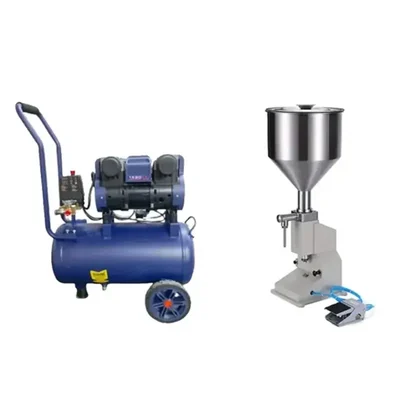

Combo of Pneumatic Type Paste Filling Machine And Oil Free Air Compressor
SKU: TI-PQ-20898
₹35000 (Including GST)
Get extra ₹525 Discount (On Checkout)
Delivery By: Feb 10 - Feb 12
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Combo of Pneumatic Type Liquid & Paste Filling Machine with Oil Free Air Compressor
220V Voltage
Country of origin: China
Description
This pneumatic liquid and paste filling machine is used in many industries, including food and beverage, pharmaceuticals, cosmetics, and chemicals. This machine use compressed air to power their filling processes, making them efficient and reliable at dispensing liquids and pastes into containers. The addition of an oil-free air compressor improves the performance of these devices by ensuring that the products being filled are not contaminated by oil or other lubricants.
Features
:- Pressure Control : It has adjustable pressure settings to accommodate different filling requirements which allows operators to set the appropriate pressure for various liquids.
- Maintenance Requirements : It offers easy maintenance access and has readily available replacement parts. Regular maintenance is crucial for ensuring longevity and reliability in performance.
- Energy Efficiency : It is designed to be energy-efficient, reducing operational costs over time by consuming less electricity while providing adequate power output for your needs.
- Flow Rate : This compressor has a sufficient flow rate to maintain continuous operation without interruptions.
Specification
:- Product Type: Paste Filler
- Brand: Generic (Imported)
- Weight (Approx.) : 15 kg
Paste / Liquid Filler
Air Compressor
- Automation Grade : Semi-Automatic
- Power source : 220V/110V
- Phase : Single
- Frequency : 50Hz
- Filling Head : Single Nozzle
- Filling Volume : 5-50 ml (adjustable)
- Nozzle Dia : 5 mm with molecular fast flowing inbuilt technology
- Speed : 20-60 times/minute
- Efficiency : 600 to 900 Bottles/Hr
- Filling accuracy : ±0.2-1 ml
- Hopper volume : 10 L
- Hopper Body : Stainless Steel
- Height range : 7.87"/200 mm
- Working pressure : 0.4-0.6 MPa or 58-87PSI
- Machine Dimension (L x W x H) : 34 x 34 x 77 cm
- Weight : 15 Kg (Approx.)
Air Compressor
- Voltage : 220 V
- Frequency : 50 Hz
- Power : 1580 W
- Tank Capacity : 30 Litres
- Motor Speed : 2850 RPM
- Air Pressure : 0.8 MPa
Usage
:Setup the Equipment :
- Place the pneumatic paste filling machine on a stable surface.
- Connect the oil-free air compressor to a power source and ensure it is functioning properly.
Connect Air Supply :
- Use appropriate tubing to connect the air output of the compressor to the air inlet of the pneumatic filling machine.
- Ensure all connections are secure to prevent air leaks.
Prepare the Product :
- Fill the hopper of the paste filling machine with the high-viscosity liquid you intend to dispense (e.g., honey, jelly).
- Adjust any settings on the filling machine according to your product specifications, such as fill volume.
Adjust Pressure Settings :
- Set the desired air pressure on the oil-free air compressor, depending on your specific filling requirements.
Test Dispensing :
- Before full operation, conduct a test fill by pressing the pedal actuation mechanism on the filling machine.
- Check for consistency in dispensing and make any necessary adjustments.
Begin Production :
- Once satisfied with test results, begin full production by continuously pressing the pedal to dispense product into containers.
- Monitor for any issues such as clogging or inconsistent fills.
Maintenance :
- Regular Cleaning Protocols : Ensure that both the paste filling machine and the air compressor are cleaned regularly to prevent contamination and maintain efficiency.
- Inspecting Components : Regularly inspect seals, nozzles, and other components of the paste filling machine for wear or damage. Replace any worn parts promptly to avoid leaks or operational issues.
Applications
:- Food and Beverage Industry : In this sector, pneumatic filling machines are widely used for bottling sauces, dressings, beverages, and dairy products. The oil-free air compressor ensures that no contaminants enter the food products during the filling process.
- Pharmaceutical Industry : For pharmaceutical applications, precision is paramount. Pneumatic fillers can accurately dispense syrups, ointments, and other liquid medications while maintaining strict hygiene standards due to the use of oil-free compressors.
- Cosmetics Industry : In cosmetics manufacturing, products like lotions and creams are filled using pneumatic machines. The absence of oil contamination is critical here as it preserves product quality and safety.
- Chemical Industry : Pneumatic filling machines are also employed in chemical manufacturing for viscous substances like adhesives or sealants. The robust design allows them to handle various chemical properties without compromising safety.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 56 cm X 27 cm X 56 cm
Package Weight
:
22.75 Kg
