Brand: HPM

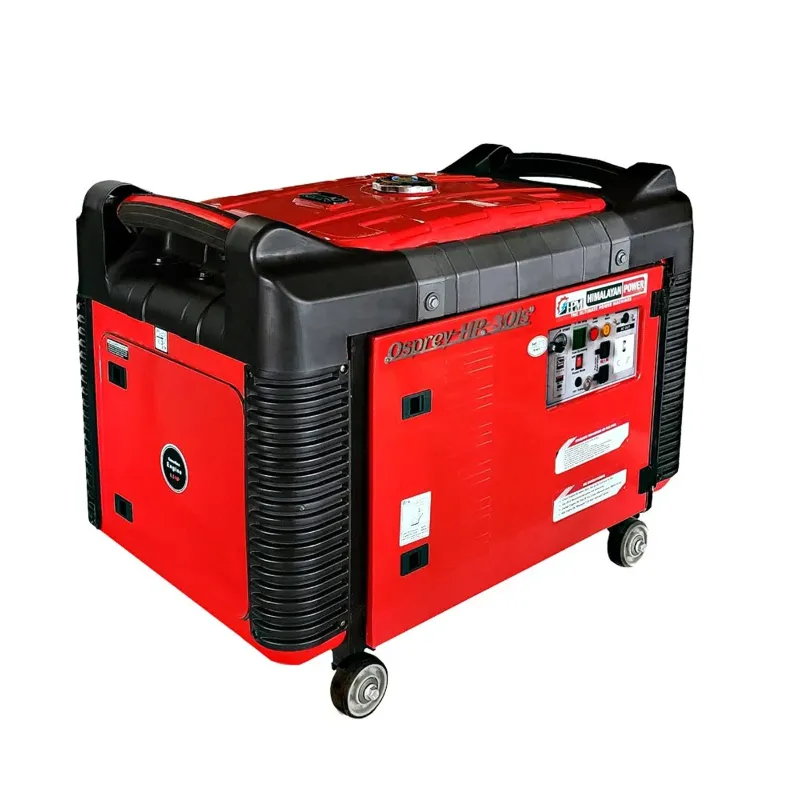

HPM 3.3 KVA Recoil and Self Start Petrol Inverter Portable Generator (Osprey HP-30is)
SKU: TI-H3-22485
MRP : ₹138000
Offer Price : ₹98599 (Including GST)
Get extra ₹1,479 Discount (On Checkout)
Delivery By: Dec 27 - Dec 29
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 3.3 KVA Petrol Inverter Portable Generator
6.5 HP Engine And 3600 RPM Speed
Recoil and Self Start
Country of origin: India
Description
The HPM 3.3 KVA Recoil and Self Start Petrol Inverter Portable Generator (Osprey HP-30is) is a versatile power solution designed for both residential and commercial use. It features a lightweight, air-cooled design with a 230V output, ensuring stable and pure power suitable for sensitive electronic devices. With a fuel tank capacity of 20 liters, it offers efficient operation and easy portability for various applications.
Features
:- 3.3 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
Specification
:- Product Type: Silent Generator
- Brand: HPM
- Weight (Approx.) : 58 kg
- Model No. : Osprey HP-30is
- Product Type : Petrol Inverter Generator
- Brand : HPM
- Dimension L x W x H : 785 x 520 x 608 mm
Generator :
- Max AC. Output : 3.3 KVA (3300 VA)
- Rated AC. Output : 3 KVA (3000 VA)
- Rated Current : 13 Amp
- NFB : 13 Amp
- AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
Alternator :
- Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
- Invertor : 100 KHz, IGBT Based Digital Invertor – 3 Kw
DC Outputs :
DC 12 V – 120 Watt, CG Port
- Continuous Output Current : 10 A (Max. 120 Watt)
- 12V DC Output Over Load Current Protection : Yes >10 A (Disconnected Load Recovery)
- DC Output Short-circuit Protection : Yes (Disconnect Load Recovery)
DC Outputs – 5V to 20 V & DC Ports
- USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
- USB Output Fast Charging QC 3.0 (3) :1* 5V – 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
- Type – C USB (4) : 1* ‘C’ Type – 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A
Engine :
- Model No. : HM170P
- Type : OHV25°Inclined, Single Cylinder, 4 strokes, S.I, Forced Air Cooling
- Maximum Power : 6.5 HP @ 3600rpm
- Bore x Stroke : 70×58 mm
- Displacement : 223 cc
- Starting System : Recoil and Self Start
- Fuel : Petrol
- Fuel Tank Capacity : 20.5 Ltr.
- Fuel Consumption : 1.3 ltr/hr
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Sound level : < 86 Db (as per CBCP – II Norms)
Panel And Other Standard Features :
- Multifunction Digital Meter & Indicator : Digital Console (V, Hz, Amp)
- Oil Alert System : Yes
- Over Load Indicator : Yes
- 2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
- Fuel Level Gauge : Yes
- AC On /Off, Overload Protection (NFB) : Yes
- Electronic Over Load Protection : Yes, Inbuilt with Inverter
- Castor Wheels : Yes
Battery Specification :
- 12 Volt 9 Ah Size
Accessories
:- Owner Manual 1 pc
- Funnel 1 pc
- Screw Driver 1 pc
- Spanner 1 pc
- Three Pin Plug 1 pc
Applications
:- Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s etc.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 78.5 cm X 52 cm X 60.8 cm
Package Weight
:
60.00 Kg
