Brand: Generic ( Made in India )

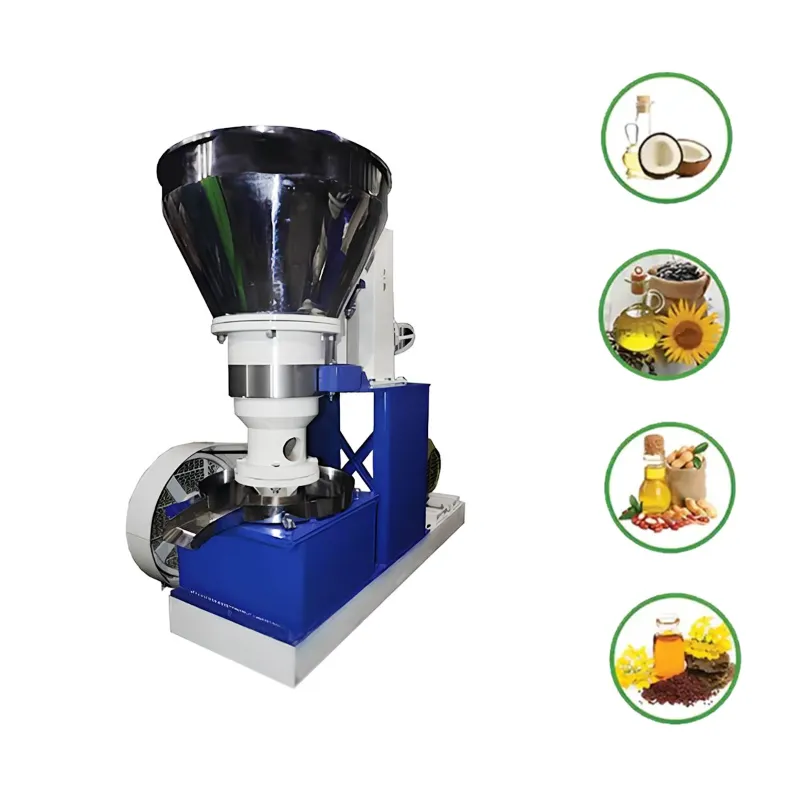

Mini Rotary Oil Extraction Machine, 5 HP Motor with 30 Kg/hr Production Capacity
SKU: TI-PE-17015
Price : ₹218400 (Including GST)
Qty:
Get Best Price
Short Description
Mini Rotary Oil Extraction Machine,
5 HP Motor with 30 Kg/hr Production Capacity
Food Grade Stainless Steel Material Used
Country of origin: India
Description
The Mini Rotary Oil Extraction machine, is an integral part of the cold oil pressing process, responsible for efficiently extracting oils from various seeds and nuts. Instead of using heat or chemicals, which might affect the oil's quality, this machine operates on the concept of mechanical pressure. This technique of extraction preserves the nutrition, flavor, and aroma of the original oil. Cold pressing is often considered as a more "natural" choice because it retains the oil's nutrients, antioxidants, and enzymes. In addition to lowering the risk of heart disease and removing other health issues, cold press oil additionally improves blood circulation, maintains healthy skin, and protects it from wrinkles as well as premature ageing.
Features
:- Easy to setup and operate, requires no professional knowledge.
- Automatic functioning.
- Food grade stainless steel material.
- Noise and Vibration free.
- Low maintenance cost.
Specification
:- Product Type: Oil Processing Machine
- Brand: Generic ( Made in India )
- Product Type : Rotary Oil Extraction Machine
- Brand : Generic (Made in India)
- Motor Power : 5 HP
- Phase : 3 Phase
- Capacity : 30 Kg/hr
- Power Consumption : 3 Unit/hr.
- Hopper Material : Stainless Steel 304 Grade
- Oil Tray Material : Stainless Steel 304 Grade
- Machine Bottom : FG 30 Grade Casting
- Plunger Material : FG 30 Grade Casting
- Axil Shaft : EN 19 Grade Shaft
- Dimensions (L x W x H) : 4 x 2 x 4 Feet (121 x 60 x 121 cm)
Applications
:- The raw materials or seeds are first fed into the hopper from which we want to extract oil. Then a big wooden churner which is powered by a motor, rotates and applies pressure which results in the extraction of oil from the seeds. No external heat is applied during the process, only bare minimum amount of heat is produced due to the moving parts of the oil press.
- The extraction takes it's own time and upon completion it flows to the Oil Tray from which it can be collected and stored into containers.
- This machine has an output of 30 Kg/hr which also depends upon the type of seed/raw material used. The machine can be used for commercial purposes.
