Brand: Generic ( Made in India )

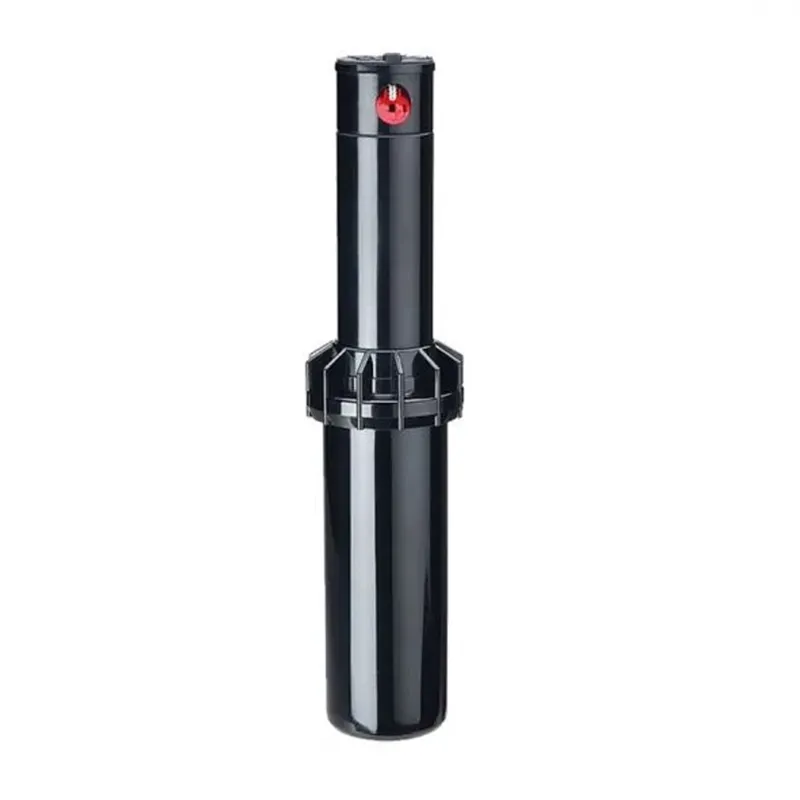

RPS 75 Rotor Sprinkler 3/4 Inch Inlet Designed for Any Home Garden Watering and Light Irrigation Applications
SKU: TI-3I-11253
₹999 (Including GST)
MRP : ₹1198
Get extra ₹15 Discount (On Checkout)
Delivery By: Apr 22 - Apr 24
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
3/4 inch (1.905 cm approx) RPS 75 gear driven rotor is used for agriculture
It has a nozzle trajectory of 26 degree
It is ideal for low flow applications
Country of origin: India
Description
3/4 inch (1.905 cm approx) RPS 75 gear driven rotor is used for agriculture.
It provides a full range of adjustment from 40-360 degree rotation.
It has a nozzle trajectory of 26 degree.
It is ideal for low flow applications.
It provides a full range of adjustment from 40-360 degree rotation.
It has a nozzle trajectory of 26 degree.
It is ideal for low flow applications.
Features
:- Right Position Start
- Full and part Circle Rotation-provides a full range of adjustment from 40-360 degree rotation
- It is ideal for low flow applications
- Rubber Cover-Seals out dirt and increases durability
- 8 Standard and 4 Low angle nozzle included
Specification
:- Brand: Generic ( Made in India )
- Weight (Approx.) : 0.32 kg
- Arc Adjustment Range : 40-360 Degree
- Flow Range : 0.7-8.3 psi
- Pressure Range :20-70 psi
- Nozzle Trajectory : 26 degree
- Low Angle Nozzle Trajectory : 11 degree
- Suitable for : Agriculture
Applications
:It is primarily used for residential and light commercial irrigation applications
Usage
:- Locate the designated "right start" mark on the nozzle turret, which indicates the starting point of the spray pattern
- Use the K-Rain key tool provided to adjust the arc and nozzle
- Insert the key into the top of the nozzle turret to lift the riser assembly
- Unscrew the nozzle retention screw with the key's hex end and pull out the old nozzle
- Insert the new nozzle at a slight downward angle and screw the retention screw back in
- Once the nozzle is installed, use the radius adjustment screw on the nozzle to fine-tune the watering distance
- After adjusting, carefully lower the riser back into position and start watering
