Brand: Generic (Imported)

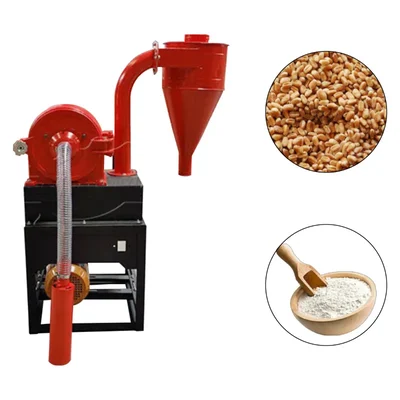

Commercial Suction Grinder Machine 300-600 kg/hr with 4 HP Motor
SKU: AB-FM-20220125
MRP : ₹38999
Offer Price : ₹37300 (Including GST)
Get extra ₹560 Discount (On Checkout)
BUY IN BULK
Out of Stock
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Suction Grinder Machine
300-600 kg/hr Production Capacity
4 HP Motor
Country of origin: China
Description
The Commercial Suction Grinder, also known as an atta chakki, is used for grinding grains into flour. This flour mill works by creating a vacuum that draws grains inside the grinding chamber, where the crushing/grinding process happens. The suction mechanism automates the process of feeding grains by collecting the grains using the vacuum created by the machine's suction part, which helps to draw the grains without the need of any labor, ensures a constant flow of grains, and avoids clogging while grinding. The freshly milled flour from this machine preserves all of the vital nutrients, making it useful for human health and helping to prevent the undesirable hazards of consuming adulterated alternatives. This machine is equipped with a 4HP motor with a production capacity of 300-600 kilos per hour which makes this machine suitable for carrying out high volume commercial grinding operations.
Features
:- Automatic Suction System : The machine is equipped with an automatic suction system that efficiently removes flour dust and particles during the grinding process. This feature not only helps maintain a clean working environment but also improves the overall efficiency of the grinding operation.
- Cyclone-Type Blower : It includes a cyclone-type blower that aids in the separation of flour from air, ensuring that the final product is free from contaminants and excess moisture. This design enhances the quality of the flour produced.
- High Production Capacity : This machine has a production capacity ranging from 300 to 600 kg per hour, making them suitable for both small-scale and larger operations. This high throughput allows for efficient processing of grains.
Specification
:- Product Type: Commercial Atta Chakki
- Brand: Generic (Imported)
- Motor Power : 4 HP
- Motor RPM : 2800 RPM
- Power Supply : 220V/50 Hz
- Applicable Materials : Corn, soybeans, coffee beans, lentils, etc.
- Production Capacity : 300-600 kg/hr.
- Dimension (L x W x H) : 580 x 460 x 890 mm
- Weight (with Motor) : 90 kg (Approx.)
- Weight (without Motor) : 58.5 kg (Approx.)
Toolsvilla deals with various types of Food Processing Machinery. Wide ranges of Flour Mill Atta Chakki are used in the dry grinding of wheat, spices, pulses, salt, and all kinds of grains.
Usage
:Step 1 : Preparation
- Gather Your Ingredients : Prepare the grains or legumes you intend to grind. Ensure they are clean and free from debris.
- Set Up the Machine : Place the suction flour grinder on a sturdy, flat surface. Ensure the machine is plugged in and securely connected.
- Attach the Collection Bag : Securely attach the collection bag or container to the cyclone blower to ensure that all ground flour is captured.
Step 2 : Operating the Machine
- Add Grains : Gradually feed your grains into the suction flour grinder. It's important to do this slowly, allowing the machine to process the grains without overloading.
- Check for Clogging : Occasionally, check the suction inlet for clogs or blockages that may hinder performance.
Step 3 : Collect and Store
- Detach the Collection Bag : Carefully detach the collection bag from the cyclone blower. Be cautious to avoid spilling any flour.
- Storage : Transfer the freshly ground flour into airtight containers for optimal freshness. Label and date the containers for future reference.
Step 4 : Clean Up
- Clean the Grinder : After use, clean the grinding chamber to avoid residue build-up. Many machines come with a cleaning brush or scraper for easy maintenance.
- Regular Maintenance : Follow the manufacturer's recommendations for regular maintenance to prolong the life of your equipment.
Applications
:- Grain Milling : Primarily utilized in the milling of grains, the suction flour grinder efficiently transforms wheat, rice, and other cereals into flour, ensuring a fine and consistent grind.
- Food Processing Industry : In food processing, the grinder is employed to produce flour for baked goods, snacks, and other food products, enhancing the quality and texture of the final product.
- Spice Grinding : The cyclone blower mechanism aids in grinding spices quickly and uniformly, preventing the loss of essential oils and flavors, thus preserving the quality of spices.
