Brand: Generic (Imported)

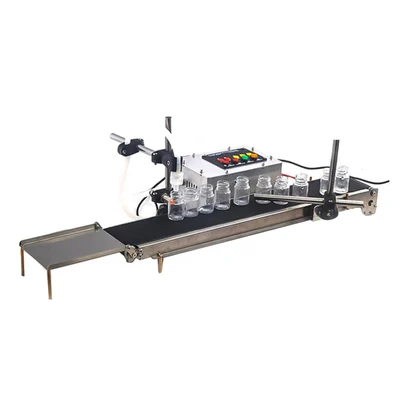

Semi Automatic 1 to 3000 ml Liquid Filling Machine with Conveyor Belt for Medical, Pharmaceutical, Commercial uses
SKU: JS-AP-20211685
Price : ₹39999 (Including GST)
Get extra ₹600 Discount (On Checkout)
Delivery By: Dec 29 - Dec 31
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Semi Automatic Liquid Filling Machine with Conveyor Belt
Filling Volume Range : 1-3000 ml
Conveyor size is (600 x 81 mm)
Country of origin: China
Description
This machine is a semi-automatic smart liquid filling machine with anti drip technology for accurate measurement. Liquid filling machine has a compact size so it needs little size. The part contacting materials is made of stainless steel which is increase life span. It machine is widely use in medical companies, industries, chemical industries, commercial uses, etc.
Features
:- Both filling volume and filling speed can be adjusted, with high filling accuracy.
- The filling head adopts an anti-leakage function resulting to accurate output.
- Designed for durability, this machine requires minimal maintenance, which contributes to lower operational costs over time.
- The machine employs advanced quantitative technology that ensures precise filling volumes, minimizing the risk of overfilling or underfilling.
Specification
:- Product Type: Liquid Filler
- Brand: Generic (Imported)
- Product Type : Liquid Filling Machine With Conveyor
- Voltage : 110-220 V, 50-60-Hz
- Power : 60 Watt
- Filling Flow Rate : 3.0 LPM (3000 ml)
- Mini Filling Volume : 1 ml
- Filling Accuracy : #1%
- Conveyor Size : 600 mm (L)* 81 mm (W)
- Filling Nozzle Diameter : 7 mm (Approx)
- Filling Speed : Adjustable
- Anti-Dripping Function : Available
- Intelligent Sensor Distance : 10 mm
- Distance of Intelligent Induction : 0-5 mm
- Maximum Temperature : 600 C
- Suitable Bottle Size : 100 mm (Maximum)
- Dimension (L x W x H) : 63.6 x 16.6 x 17.9 Centimeter (Approx)
- Weight : 5.8 Kg (Approx)
Applications / Usage :
- Mostly used in Medical & Pharmaceutical Industries, Manufacturing Plant, Food & Beverage Industries etc.
Applications
:Food and Beverage Industry : This machine is widely used for filling liquids such as free flow liquid into bottles or containers ranging from 1 ml to 3000 ml. Its precision ensures consistent fill levels, which is crucial for product quality and compliance with regulations.
Pharmaceutical Industry : It is utilized for filling medicinal liquids, syrups, and other pharmaceutical products into vials or bottles, which is in low viscosity just like water.
Cosmetic Industry : Digital free flow liquid filling machines are used to fill free flow liquid like Rose Water. Their precise control over the filling volume helps maintain product consistency.
Usage
:- Preparation : Ensure that the machine is clean and all components are in good working condition.
- Set Up the Machine : Adjust the filling volume on the machine according to the specifications of the product being filled.
- Prepare the Liquid : Pour the liquid into the feed hopper. Ensure that there is enough liquid for continuous operation.
- Position Containers : Place empty containers on the conveyor belt.
- Start Operation : Activate the conveyor belt to move containers under the filling nozzle.
- Finalize and Clean Up : Once all containers are filled, stop the conveyor belt. Clean any spills and ensure that all parts of the machine are cleaned.
Maintenance :
- Regular Cleaning and Disinfection : Periodic disassembly for cleaning is crucial. Ensure that all parts in direct contact with the product are thoroughly cleaned and disinfected to maintain hygiene standards.
- Inspection of Components : During maintenance, inspect seals, nozzles, and other components for signs of wear or damage. Replace any worn-out parts promptly to prevent leaks or inaccuracies in filling.
- Conveyor Belt Maintenance : Inspect the conveyor belt for wear and tear, ensuring it operates smoothly without slipping or misalignment.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 62 cm X 26 cm X 25 cm
Package Weight
:
6.17 Kg
