Brand: Generic (Imported)

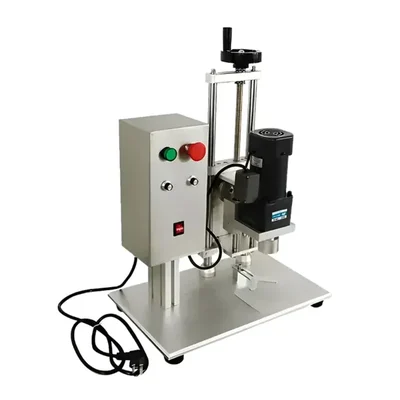

Heavy Duty 10-50 mm Semi-Automatic Continuous Capping Machine DDX-450
SKU: GA-OC-20234352
MRP : ₹43125
Offer Price : ₹37500 (Including GST)
Get extra ₹563 Discount (On Checkout)
Delivery By: Dec 30 - Jan 1
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
SMART Heavy Duty 10-50 mm Semi-Automatic Continuous Capping Machine
Capping Speed 10-15 Caps (per min.)
Voltage 220V
Voltage 220V
Country of origin: China
Description
This DDX-450 is a semi-automatic continuous capping machine designed for applying screw caps to round bottles with a cap diameter ranging from 10 mm to 50 mm. It operates using an electric mechanism, allowing for efficient and consistent capping of bottles within a height range of 40 mm to 200 mm. This machine is suitable for various industries, including pharmaceuticals, chemicals, food and beverage, cosmetics, and more. Its design emphasizes ease of use, adjustable torque settings, and compatibility with different cap sizes.
Features
:- Cap Size Compatibility : The machine is designed to accommodate screw caps with dimensions ranging from 10 mm to 50 mm.
- Bottle Height Range : It can handle bottles with heights between 40 mm and 200 mm, making it versatile for various packaging needs.
- Electric Operation : The DDX-450 operates using an electric powder mode, enhancing efficiency and ease of use compared to manual capping methods.
- User-Friendly Adjustments : The machine features easy adjustments for different cap sizes and bottle heights, ensuring quick setup changes.
Specification
:- Product Type: Semi-Automatic
- Brand: Generic (Imported)
- Model No. : DDX-450
- Operation Mode : Semi-Automatic
- Capping Speed : 10-15 Caps (per min.)
- Voltage : 220 V
- Frequency : 50 Hz
- Bottle Height : 40-200 mm
- Bottle Cap Diameter : 10-50 mm
- Working Speed : 20-40/min
- Dimension (L x W x H) : 52 x 30 x 53 cm
- Weight : 24 Kgs (Approx.)
Note : If you make full online payment on each orders then you will get instant discount on your each purchase.
Usage
:1. Preparation Before Operation :
- Set Up the Machine : Place the DDX-450 on a flat, stable surface in a well-ventilated area. Ensure the power supply matches the machine's specifications.
- Inspect the Components : Check that all parts, including the motor, conveyor belt, and capping head, are correctly installed and functioning properly.
2. Adjusting the Cap Size :
- Select the Size : Based on your specific application, adjust the machine for the desired cap size, ranging from 10 mm to 50 mm.
- Securing the Cap : Load the caps into the designated feeder area, ensuring they align correctly with the machine’s feeding mechanism.
3. Setting Up the Conveyor System :
- Container Placement : Position your containers (bottles or jars) on the conveyor belt leading to the capping station.
- Customize Speed Settings : Adjust the conveyor speed according to your production needs.
4. Operating the Machine :
- Power On : Switch the machine on and monitor the display for any error messages or alerts.
- Start the Capping Process : Engage the capping operation to begin the cycle. The DDX-450 should automatically align and cap the containers as they pass under the capping head.
Maintenance :
- Inspection of Components : Periodically check all mechanical parts, including the capping head, conveyor belts, and electrical connections for wear and tear. Replace any damaged or worn parts promptly.
- Regular Cleaning : Ensure that the machine is cleaned regularly to prevent buildup of product residue.
Applications
:- Pharmaceuticals : Used for capping medicine bottles, ensuring secure seals to maintain product integrity.
- Cosmetics : Ideal for sealing cosmetic products in plastic or glass containers, providing a reliable closure.
- Food and Beverage : Suitable for capping sauces, oils, and other liquid food products, helping to preserve freshness.
- Chemicals : Effective for sealing chemical containers where secure packaging is essential for safety.
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 50.8 cm X 44.9 cm X 68.5 cm
Package Weight
:
26.00 Kg
