Brand: Generic (Imported)

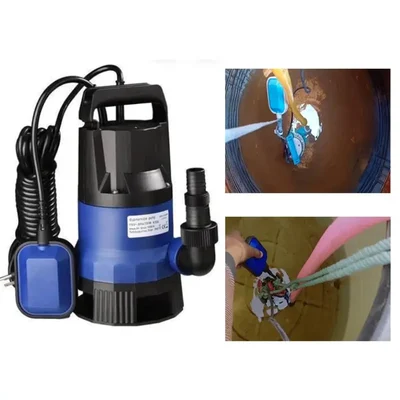

Heavy Duty 1.5 HP Single Phase Sewage Submersible Pump - PP Body & 15000 LPH
SKU: SD-DM-21185
MRP : ₹7620
Offer Price : ₹4990 (Including GST)
Get extra ₹75 Discount (On Checkout)
Delivery By: Jan 26 - Jan 28
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
1.5 Hp Single Phase PP Body Sewage Submersible Pump
10 meters Max. Head
15000 LPH Max. Discharge
Country of origin: China
Description
Heavy Duty 1.5 HP Single Phase Sewage Submersible Pump - PP Body & 15000 LPH
Description :
- The drainage pump is used for draining pits and deep roadway underpasses, as well as for de-watering basements and courtyards subject to a flooding risk or groundwater. It is usually started automatically via float switches.
Features :
- Built-in overload motor protector with automatic reset permanent split capacitor.
- Impeller: Noryl.
- Superior Steel Shaft with the rotor.
- Mechanical seal: Carbon-ceramics.
- Type Con galleggiante with float switch.
- Protection: IP 68.
Specification :
- Product Type : Sewage Submersible Pump
- Brand : Generic (Imported)
- Wattage : 1.1 kW
- Voltage : 230 V AC Supply
- Electricity Connection : Single Phase
- Max. Discharge Range : 15000 LPH (250 LPM)
- Cable Length : 5 meter
- Max. Head Range : 10 meter (33 feet)
- Max Submersible Depth : 7 meter (23 feet)
- Solid Size : Up to 35 mm
- Delivery Size : 50 mm
- Temperature Range : Up to 35 °C
- Shaft Material : Stainless Steel
- No Load Speed : 2800 RPM
How To Operate :
- Connect a discharge pipe with a diameter at least equal to the diameter of the pump outlet.
- Immerse the pump in the liquid to be sucked, by making an angle of 45 degrees (to reduce the amount of air rapped in tho pump body) the pump rests on he bottom, make sure it is on a flat and stable surface.
- Make sure that no one is present in the liquid to be pumped.
- Plug the pump to the mains.
Application :
- Submersible draining pumps is suitable for automatic fixed domestic applications and for draining cellars and garages subject to flooding, also particularly useful as a portable pump for emergencies such as draining waste from tanks or rivers, emptying muddy swimming pools, fountains or excavations and subways. These pumps can lift liquids even with suspended solids in sewage water from septic tank. Level float switch offers permanent and automatic pump operation.
Note : As the head or height increases the flow rate continues to decrease.
Specifications
:- Product Type: Power - 1.5HP
- Brand: Generic (Imported)
- Power : 1.5 hp
- Weight (Approx.) : 5 kg
- Flow Rate : 250 lpm
- Head : 10 meter
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 20 cm X 20 cm X 38 cm
Package Weight
:
5.35 Kg
