Track OrderBrand: Generic ( Made in India )

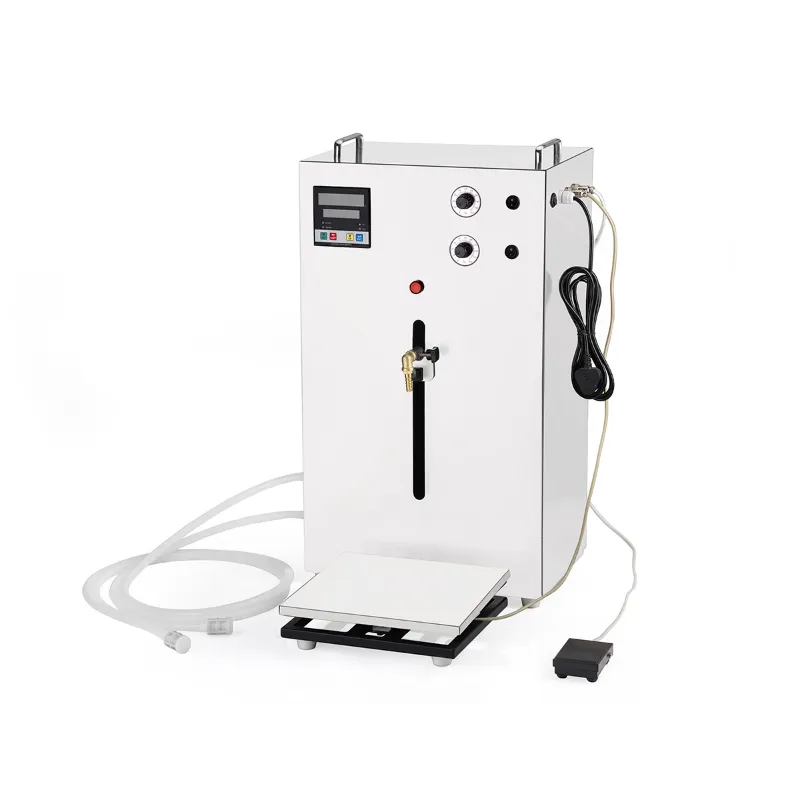

Semi-Automatic Single Head 50 to 5000 ml Load Cell Based Liquid Filling Machine
SKU: TI-SS-25998
₹51000 (Including GST)
Get extra ₹765 Discount (On Checkout)
Delivery By: Apr 7 - Apr 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Semi-Automatic Single Head Load Cell Based Liquid Filling Machine
40 Kg Load Cell Capacity
50 to 5000 ml Filling Capacity
Country of origin: India
Description
With a reliable range of Loadcell Based Bottle Filling Machine, this machine is competent of carving a niche in the market. When greater accuracy is needed, this is used to transfer ingredients to bottles and containers. It is best suited for filling cooking oil, cough syrup, pesticides, and chemicals.
Features
:- Load Cell Technology : This machine utilizes advanced load cell technology to ensure accurate measurement of the liquid being filled.
- High Accuracy : The use of load cells minimizes the risk of underfilling or overfilling, which is crucial for maintaining product quality and adhering to regulatory standards.
- User-Friendly Interface : The machine is equipped with an intuitive control panel that allows operators to easily set parameters and monitor the filling process.
- Durable Construction : The machine is built with high-quality materials that ensure durability and reliability in demanding production environments.
Specification
:- Brand: Generic ( Made in India )
- Weight (Approx.) : 21 kg
- Filling Head : Single
- Filling Capacity/Nozzle : 50 to 5000 ml
- Load Cell Capacity : 40Kg
- Power : 220V AC
- Mode of Operations : Push button and Foot Switch
- Anti Drop : Available
- Power Off Memory : Available
- Filling Accuracy : +/-0.5%
Note : Not applicable for acidic liquid (Eg. : Thinner)
Usage
:1. Setup the Machine :
- Ensure the machine is placed on a stable surface and connected to a power source.
2. Prepare the Container :
- Place the empty container on the filling scale platform.
- Ensure it is correctly positioned to be filled properly.
3. Set Fill Parameters :
- Input the desired fill weight using the control panel.
- Adjust any necessary parameters for specific liquid types or filling requirements.
4. Start Filling Process :
- Manually start the filling process by pressing the push button or by pressing the paddle switch.
5. Monitor Filling :
- Observe the filling process on the screen, which displays real-time weight measurements.
- The system will automatically stop dispensing once the target weight is reached.
6. Post-Filling Actions :
- Once filled, allow time for any residual liquid to drain from the nozzle before lifting it out of the container.
Maintenance :
- Routine Cleaning : At the end of each production run, thoroughly clean all machine parts that come into contact with liquid solutions.
- Visual Inspection : Conduct regular visual inspections for signs of wear and tear, such as leaks or corrosion, particularly on seals.
Applications
:- Food and Beverage Industry : This machine is widely used for filling liquids such as free flow liquid into bottles or containers ranging from 50 ml to 5000 ml. Its precision ensures consistent fill levels, which is crucial for product quality and compliance with regulations.
- Pharmaceutical Industry : It is utilized for filling medicinal liquids, syrups, and other pharmaceutical products into vials or bottles, which is in low viscosity just like water.
- Cosmetic Industry : Digital free flow liquid filling machines are used to fill free flow liquid like Rose Water. Their precise control over the filling volume helps maintain product consistency.
- Laboratories : Useful for precise filling of liquid samples and solutions.
