Brand: Generic (Imported)

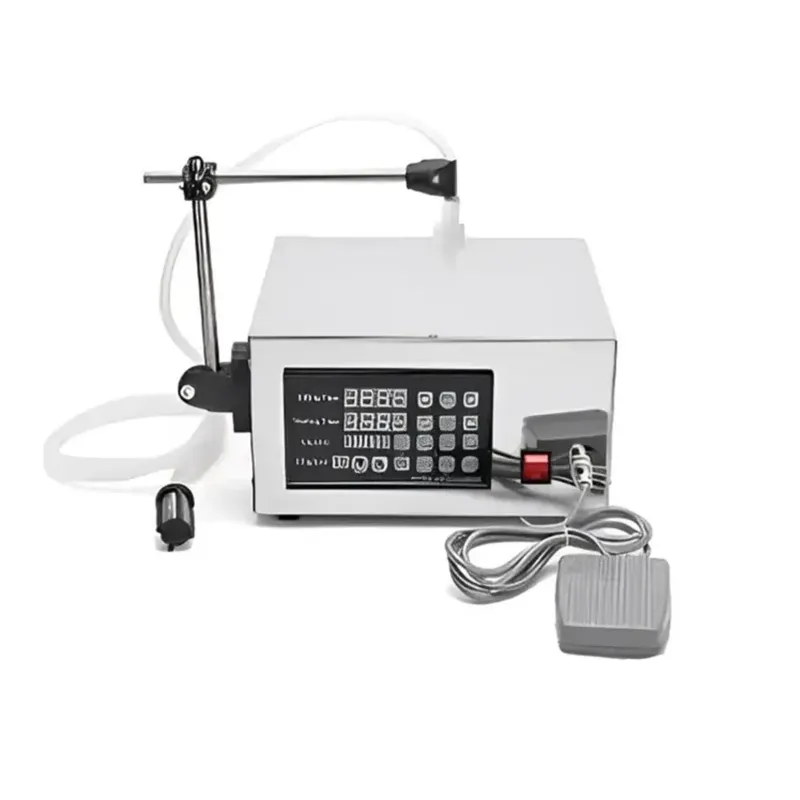

SMART Heavy Duty LT130 Single Head 5 to 4000ml Liquid Filling Machine (with Free Accessories)
SKU: DM-SV-20236314
₹7299 (Including GST)
Get extra ₹109 Discount (On Checkout)
Delivery By: Feb 8 - Feb 10
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Heavy Duty Single Head 5 to 4000ml Liquid Filling Machine (with Free accessories)
80 Watts Power Consumption
3.2 liter/min Maximum speed (Approx)
Country of origin: China
Description
This liquid filling machine is designed for the precise filling free flow liquid into containers. This machine is capable of handling a wide range of liquid volumes, from as little as 5 milliliters up to 4000 milliliters. It is used in industries such as food and beverage, pharmaceuticals, cosmetics, and chemicals.
Features
:- It can fill containers without waste.
- Easy to use.
- Easy to clean
- The Pump Head is Anti-Erode Glove & Anti Corrosion.
- Filling Range can be from 5ml Depending on the Filling Time You Set.
Specification
:- Product Type: Liquid Filler
- Brand: Generic (Imported)
- Weight (Approx.) : 2.8 kg
- Control Method : Manual and Automatic
- Material : SS Plating Cover
- Voltage Power : 220 V
- Power Consumption : 80 W
- Deviation : ±2%
- Cooling by : Air cooling
- Frequency : 50-60 Hz
- Capacity : 5-4000 ml
- Maximum speed : 3.2 liter/min
- Nozzle dimensions : 12 mm each
- Maximum suction Distance : 2 meter (Approx.)
- Weight : 2.8 Kgs (Approx.)
Note : Not applicable for acidic liquid (Eg. : Thinner)
Accessories
:- 1 Paddle Switch
- 1 Nozzle Stand
- L-Key 1 Piece
- 1 Screw Driver
Usage
:1. Setup the Machine :
- Place the machine on a stable, flat surface.
- Ensure that it is connected to a power source and turned on.
2. Adjust the Filling Volume :
- Use the digital display to set the desired filling volume between 5 ml and 4000 ml.
- Confirm the settings by pressing the appropriate button.
3. Prepare the Liquid :
- Ensure that the liquid to be filled is in a suitable container.
- Check for any clogs or blockages in the filling nozzle.
4. Position Containers :
- Place empty containers under the filling nozzle, ensuring they are aligned properly.
5. Start Filling Process :
- Press the padel switch to begin filling.
- Monitor the process through the digital display for accuracy.
6. Stop and Clean :
- Once filling is complete, release the padel switch & turn off the power switch.
- Clean any spills and ensure that all parts of the machine are free from residue before storage.
Maintenance :
- Check for Wear and Tear : Regularly inspect all components, including hoses, nozzles, and seals, for signs of wear or damage. Replace any worn parts promptly to maintain optimal performance.
- Storage Conditions : When not in use, store the machine in a dry, clean environment to protect it from dust and moisture which could affect its functionality.
Applications
:- Cosmetic Industry : Digital free flow liquid filling machines are used to fill free flow liquid like Rose Water. Their precise control over the filling volume helps maintain product consistency.
- Laboratories : Useful for precise filling of liquid samples and solutions.
- Food and Beverage Industry : This machine is widely used for filling liquids such as free flow liquid into bottles or containers ranging from 5 ml to 4000 ml. Its precision ensures consistent fill levels, which is crucial for product quality and compliance with regulations.
- Pharmaceutical Industry : It is utilized for filling medicinal liquids, syrups, and other pharmaceutical products into vials or bottles, which is in low viscosity just like water.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 34 cm X 25.4 cm X 18 cm
Package Weight
:
3.24 Kg
