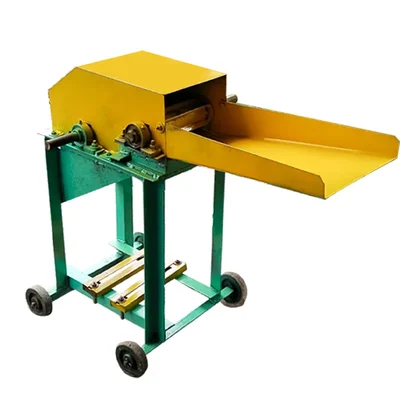

Heavy Duty Chaff Cutter/Grass Cutter Machine Without Motor Or Engine, 500-600 Kgs/hr
SKU: TI-HD-11085
₹11225 (Including GST)
MRP : ₹12899
Get extra ₹168 Discount (On Checkout)
Delivery By: Apr 7 - Apr 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Chaff Cutter/Grass Cutter Machine Without Motor
Required motor 2-3 HP
Cutting Capacity of 500-600 Kgs/hr with 2 HP Motor and 700-800 Kgs/hr with 3 HP Motor
Country of origin: India
Description
Heavy-duty Chaff cutter machine is multi-purpose equipment that is used to make green & dry fodder for animals. They are known as chara cutters and kutti cutting machines in various regional languages. It's used to feed dairy cattle to improve their milk production. This machine requires a 2-3 HP electric motor to perform efficiently and is build using highly durable material which enhances the overall durability of the machine. This machine can handle high volume cutting tasks at an ease which makes it suitable for commercial and agricultural usage.
Features
:- User-Friendly Operation: Designed with ergonomics in mind, this machine features simple controls that make it easy to operate, even for users with limited technical skills.
- Blades: Equipped with sharp, high-strength blades, chaff cutters ensure efficient cutting of fodder into uniform sizes, which aids in easier digestion for animals.
- Minimal Maintenance: The robust design of chaff cutter results in lower maintenance requirements, allowing farmers to focus more on productivity rather than frequent repairs.
Specification
:- Brand: Patel Brothers
- Weight (Approx.) : 35 kg
- Material : Mild Steel
- Required Motor : 2 HP - 3 HP
- Phase : Single
- Power Source : Electric Motor
- Blade Material : Tempered Iron Blade
- No. of Blades : 2 (Rotating)
- Iron Plate Thickness : 10-12 mm (Approx.)
- Cutting Capacity : 500-600 kg per hour (with 2 HP Motor)
- Cutting Capacity : 700-800 kg per hour (with 3 HP Motor)
- Machine Feed : Straw, Dry Grass, Corn Stalk, Fresh Grass.
- Weight : 35 Kg (Approx.)
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: As this machine doesn't include the motor with it. The user needs to connect a motor in order to start the fodder cutting operation. Ensure that the motor is connected to an appropriate power source.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance :
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Livestock Feed Preparation: Chaff cutters are primarily used to produce finely chopped fodder for various livestock, including cattle, sheep, and goats, enhancing digestibility and nutritional intake.
- Waste Reduction: Chaff Cutters efficiently utilize crop residues, converting what would otherwise be waste into valuable feed, thereby promoting sustainable farming practices.
- Time and Labor Savings: The mechanized operation of chaff cutters significantly reduces the time and labor required for chopping fodder manually, contributing to increased operational efficiency on farms.
