Brand: HPM

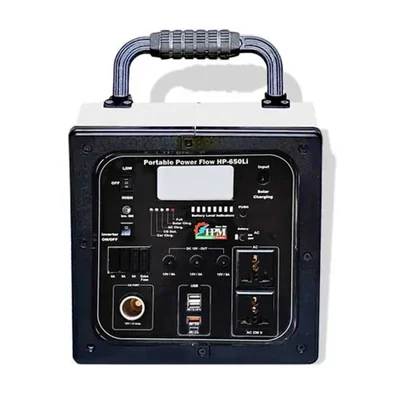

HPM 400VA Solar Inverter With In-built Lithium Battery (HP-650Li),1 Year Warranty.
SKU: TI-H4-22509
MRP : ₹21000
Offer Price : ₹14990 (Including GST)
Get extra ₹225 Discount (On Checkout)
Delivery By: Dec 26 - Dec 28
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM Portable Lithium Power Inverter Generator (HP-650Li)
400 VA Max. Output
1 Year Warranty
Country of origin: India
Description
This is a Portable Lithium Power Generator Cum Inverter. This inverter gives AC 230V output & also 4* DC-5V for smartphone charging & 3* 12V DC output for running 12V DC appliances. This 650Li power Station Model has a inbuilt 15W High Power LED Light. The main advantage of this solar power station cum inverter is that, it is a inverter , Hence it can supply Main AC 230V to home appliances & when main power fails, the home load automatically shift over to Battery Inverter Power. This is a lightweight Power Station & can be used at Household & as well can be carried away anywhere for outdoor/ field power applications. This inverter has a big Lithium Power Pack of 12.8V-18AH, which is largest in its Class & hence have a longer backup period.
Specification
:- Product Type: Solar Power Generator
- Brand: HPM
- Weight (Approx.) : 5.5 kg
- Model No. : HP-650Li
- Dimension : 275 x 220 x 270 mm
Inverter :
- Battery: Lithium Ion Phosphate LiFePo4
- Type : IFP1779135-10 (Cylindrical), 3.2V, 15 AH
- Battery Voltage : 12.8 V (4S- 4P)
- Peak Capacity : 12.8V - 18AH (230 Wh)
- Single Cell Equivalent Capacity : 104 Ah @ 3.2 V
- Life Cycles : ≥ 2000 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System) :Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
- Battery Expansion : NA
- Shelf Life: Charge Every 3 - 6 Months
AC 230 Volt Output (Invertor Power Supply) :
- Continues Rated Power Output : 300 VA
- Peak Output Power : 400 VA
- Voltage & Type : AC-230V, 50Hz, Modified Sine Wave
- THD : NA
- Power Factor : 0.9
- Over Load : 116% < Load <150% @ 2min 150% < Load <200% @ 10 S
- Power Less (No Load & Turned- Off) : < 10W
- AC Output Back time @ 70% of rated load (VA) : ≥ 1Hours & 10 Minutes
- Max. Efficient (>70% Load) : 92%
- Output Socket : Indian Version AC Socket x 2
DC - Output- 12V- Cigarette Lighter Socket :
- Output Voltage : 12.8 ± 1 V
- Continuous Output Current : 12 A (Max. 150 Watt)
- DC Output Over Load Current Protection : NA
- DC Output Short Circuit Protection : Yes (Disconnect Load Recovery)
Other DC Outputs - 5V to 20 V & DC Ports :
- USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port
- 12V DC -DC 5521 (2 Ports) : 2 x 12V, 5A-60 W Each (5.5mm x 2.1 mm)
- USB Output Fast Charging QC 3.0 (3) : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
- Type - C USB (4) : 1* 'C' Type - 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A
- USB & DC Over Load Current Protection : Yes
- USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)
- Illumination / LED Flash Lighting : (2 Modes: Low, Bright).
- Battery Level / Status : Led based Battery Level Indication
- Working Status Button, Ports, Multifunction : LED Display For Solar Charging, Grid Charging, CG charging , Inverter Fault Status, USB Switch, System On/Off Switch, Inverter O/P On/Off Switch, Led High low & off switch.
DC - Charging Input Power (3 Way of Recharge) :
- AC - DC Adapter (CC/CV) 15V - 5A (60 Watt Max.) : Charging Time 6 -7 Hours
- Solar Panel PV Charge : 18V / 4.5 Amps - Max 80 W (40 + 40 Watt) Charging Time 6 - 7 Hours
- Car Charge Input (From Cigarette Socket) : 12 - 14V, 10 Amps Max. Charging Time <3 Hours
- Heat Dissipation : Air Cooling (Fan), Aluminium Housing
- IP Rate : IP 32 Protected from Water Spray < 15˚From Vertical
Working Condition :
- Charge Temperature : 0˚C ~ 45˚C
- Operating Usage Temp. : -10˚C ~ 45˚C
- Operation Storage Humidity : 5% ~ 90%
Applications
:- Drone, Smartphone Tablet, Laptop, Car, Air Compressor, Mini Fridge, Car Fridge, Led Light, Flood Light, Wi-Fi - Router, Vacuum Cleaner, Projector, Coffee Maker, Blender, Cordless Drill etc. can run on this inverter.
