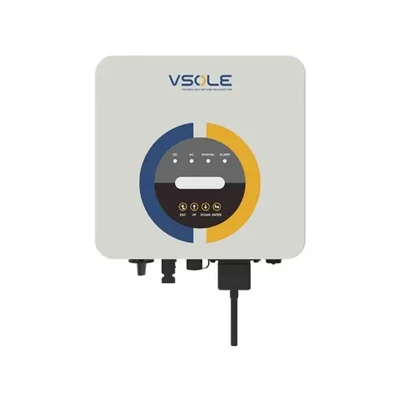

Vsole 4kW Single Phase MPPT Grid Tie Inverter With 10 Years Warranty for Residential and Commercial Solar Panel Systems

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

4 KW Solar Inverter

10 Years Warranty

Country of origin: India

Description

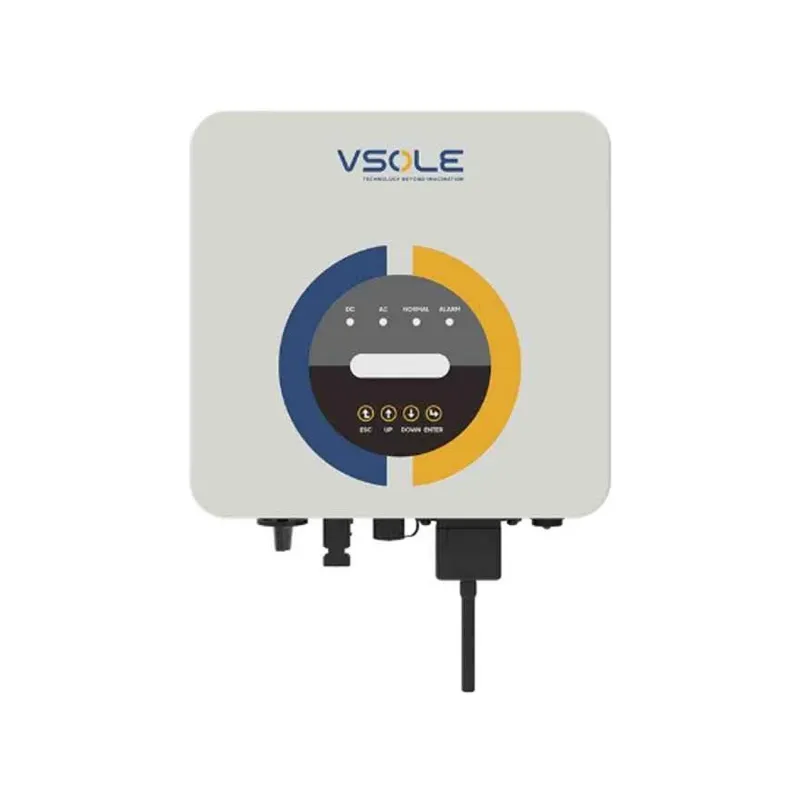

The Vsole 4 Kw Single Phase MPPT Grid Tie Inverter, a reliable and efficient solution for your solar power needs. As a leading brand in the solar industry, Vsole brings you cutting-edge technology with its MPPT technology, ensuring maximum power point tracking for optimal performance. With an operating humidity range of 0-100%, this inverter is built to withstand any climate conditions, making it suitable for a variety of locations.

Designed as a grid tie inverter, this product seamlessly connects your solar panels to the grid, allowing you to harness the power of the sun while reducing your reliance on traditional energy sources. With a rated output current of 19 Amp, it delivers a consistent and stable power supply to meet your energy demands.

Efficiency is a key feature of the Vsole 4 Kw Single Phase MPPT Grid Tie Inverter. Its MPPT efficiency exceeds 99%, ensuring that you make the most of your solar power generation. The built-in LED with LCD display provides real-time information on the system's performance, allowing you to monitor your energy production and consumption effortlessly.

Operating at a frequency range of 50 Hz (+ -5%), this inverter guarantees compatibility with most electrical systems. Whether it's for residential or commercial applications, the Vsole 4 Kw Single Phase MPPT Grid Tie Inverter is a reliable and efficient choice for harnessing solar power and reducing your carbon footprint. Trust in Vsole for your solar inverter needs, and embrace a sustainable future.

Features

 :

• On grid inverter.
• DC Overloading Upto 10%.
• Fan-Less Natural Cooling Models.
• High DC/AC Ratio for more Yields.
• RS485, Remote Monitoring (Wi-Fi/GPRS).
• User Friendly Web & Mobile App Monitoring.
• Zero Export Enabled Models (External CT Required).
• Inbuilt Surge Protections at both AC & DC Side.
• Compact & Light Weight Design for an Easy Installation.
• Multiple MPPT Design with IDA Technology (Intelligent Disturbance Algorithm).
• Special External Colour with Epoxy Novolac Coating for Better Heat Management.
• H-Bridge & T-Type Three-Level Topology & Enhanced SPWM (Space Pulse Width Modulation).

Specification

 :

• Brand: Generic ( Made in India )
• Weight (Approx.) : 4.8 kg

• Model : VS-422S
• Ambient Temperature Range : -25 to 65 deg C
• Capacity : 4 kW
• Display : LED with LCD Display
• MPPT Efficiency :  >99 %
• Max. Euro Efficiency : 97.3 %
• Max. Conversion Efficiency :  97.5 %
• Frequency Range : 50 Hz (+ -5%)
• Number of MPPT : 1
• Number of Phases : Single Phase
• Operating Humidity : 0-100 %
• Operating Voltage Range : 140-285 V
• Output Power : 4 kW
• Power Output :  0.8 Leading to 0.8 Lagging
• Protection : IP65
• Rated Grid Voltage : 230 V
• Rated Output Current : 19 Amp
• MPPT : 20 & 30 Amp
• THDI : <3 %
• Technology : MPPT
• Type of Product : Grid Tie/On Grid
