Brand: Generic (Imported)

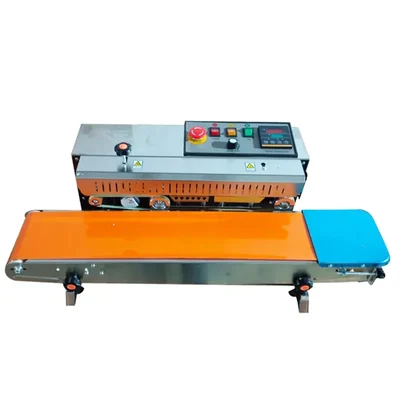

SMART Heavy Duty FR 900 SS Horizontal Band Sealer with 6 Months Warranty and Free Accessories
SKU: TI-SP-12082
MRP : ₹18389
Offer Price : ₹15990 (Including GST)
Get extra ₹240 Discount (On Checkout)
Delivery By: Dec 26 - Dec 28
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
SMART Heavy Duty SS Horizontal Continuous Band Sealer (with Free accessories)
Stainless Steel Material
6-12 mm Sealing Width and 0-12 m/min Sealing Speed
Country of origin: China
Description
This horizontal continuous-band sealer has the ability to continually seal high graded pouches. The filled plastic bags are placed on a motorized conveyor belt that automatically moves the bag forward, and the packets or pouches are sealed. It has 4 kg of conveyor loading capacity and 0–12 m/min of sealing speed, so it can save labor time and effort. This machine is able to increase packaging against heavy production.
Features
:- Adjustable Temperature Range : The temperature range of the Horizontal SS Continuous Band Sealer is adjustable from 0°C to 300°C. This flexibility enables the sealing of a wide variety of materials, accommodating different thicknesses and compositions.
- Variable Speed Regulation : This machine offers variable speed regulation, with a sealing speed that can reach up to 12 meters per minute. This capability allows for efficient operation, making it suitable for high-volume production environments.
- Easy Operation : The design of the sealer facilitates easy operation; operators simply need to feed bags into the machine, which automatically guides them through the sealing process on a motorized conveyor belt.
- Maximum Conveyor Loading Capacity : The maximum loading capacity for the conveyor is 4 kg, which means it can handle reasonably heavy packages without compromising performance.
Specification
:- Product Type: Horizontal
- Brand: Generic (Imported)
- Model No. : FR 900
- Controller Type : Digital
- Running Time : 8 to 10 hours. (Non Stop)
- Voltage : 220 V
- Frequency : 50 Hz
- Power : 750 W
- Sealing Speed : 0-12 m/min
- Sealing Width : 6-12 mm
- Temperature Range : 0-300°C
- Max. Conveyor Loading : 4 kg Max (Approx)
- Material : Stainless Steel
- Dimension (L x W x H) : 850 x 420 x 360 mm
- Product Weight : 13 Kg (Approx.)
Note :
- Suitable for High Graded Pouches, just like laminated Pouches.
- Conveyor belt color may vary.
- If you make full online payment on this product then you will get instant discount on your purchase.
6 Month Warranty on Parts :
- Motor
- Heating Block
- Cooling Block
- Gear Box
Precautions Guidelines :
Be aware of fraudulent Polypropylene Pouches found in regular markets for vacuum sealing or heat sealing as usage of duplicate Pouches may hamper your machines sealing area, performance and also your customer satisfaction in the market.
Accessories
:- 5 Pieces Teflon Belt
- Conveyor Belt extension
- Screw Driver
- Packaging Pouch Adjustment Bar
Usage
:- Preparation : Ensure the machine is placed on a stable, flat surface. Plug in the sealer and turn it on, allowing it to heat up for a few minutes.
- Setting Temperature : Adjust the temperature setting according to the type of material being sealed.
- Feeding the Material : Place the bags or pouches that need sealing on the conveyor belt. Ensure they are aligned properly for consistent sealing.
- Sealing Process : As the bags move through the sealer, they will be heated and sealed automatically. Monitor the process to ensure proper sealing without overheating.
- Cooling : After passing through the sealing area, allow sealed bags to cool down before handling them further.
Maintenance :
- Regular Cleaning : Ensure that the sealing area is cleaned regularly to prevent contamination and buildup of residues.
- Electrical Components Inspection : Periodically inspect electrical connections, wires, and components for any signs of wear or damage.
- Routine Testing : Conduct routine tests with sample materials to ensure that the machine is functioning correctly and producing quality seals.
Applications
:- Food Packaging : One of the primary applications of the Horizontal Band Sealer is in the food industry. It is used to seal bags containing snacks, grains, frozen foods, and other perishable items.
- Pharmaceutical Packaging : In the pharmaceutical sector, this sealer is employed to package medicines and health products securely. The precision sealing prevents moisture and air from compromising the integrity of sensitive pharmaceutical products, which is crucial for maintaining their efficacy.
- Agricultural Products : This machine can seal bags containing seeds, fertilizers, and other agricultural products. The effective sealing helps protect these items from environmental factors that could affect their quality.
- Industrial Applications : In industrial settings, the Horizontal Band Sealer is used for packaging components or parts that require protection from dust or damage during shipping and handling.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 89 cm X 43 cm X 34.5 cm
Package Weight
:
17.55 Kg
