Brand: YBICO
YBICO C3180 32 mm Steel Strapping Machine
SKU: SI-YC-24549
₹26200 (Including GST)
Get extra ₹393 Discount (On Checkout)
Delivery By: Feb 10 - Feb 12
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
YBICO C3180 32 mm Steel Strapping Machine
Strapping Thickness is 0.9 mm
Suitable for Steel Strap
Country of origin: Taiwan, Province of China
Description

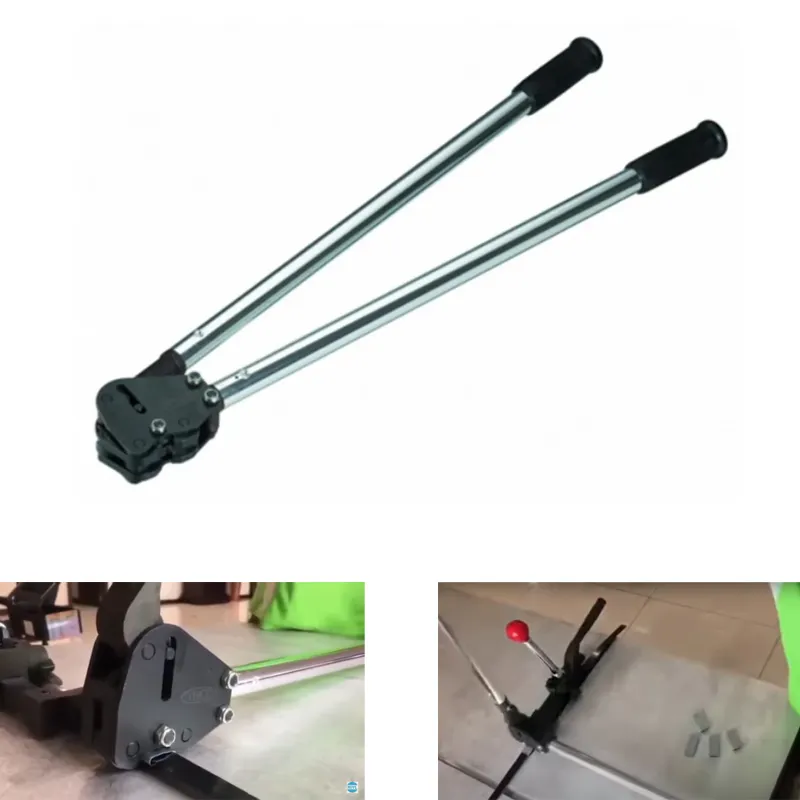

This YBICO C3180 Sealer is a manual steel strapping tool designed specifically for sealing steel straps with a width of 32 mm (approximately 1-1/4 inches). It features a double notched sealing action that enhances grip and ensures secure seals. The sealer is equipped with a long aluminum pipe handle, which makes it lightweight and sturdy, allowing maximum force to be transferred during the sealing process.
Features
:- Sealing Mechanism : The C3180 utilizes a double notched sealing action, which enhances grip and ensures a secure seal on the steel strap. This mechanism is particularly effective for overlapping seals or closed seals.
- Handle Design : It comes with a long aluminum pipe handle that measures 25.5 inches. This design not only makes the tool lightweight but also sturdy, allowing maximum force to be transferred during the sealing process.
- Ergonomics : The side action functionality of the sealer reduces operator strain, making it easier to use over extended periods. The ergonomic design ensures that force is applied in an optimal direction, improving efficiency and comfort during operation.
- Designed for 32mm Steel Strapping : This sealer is specifically calibrated to work flawlessly with 32mm steel strapping, ensuring a secure and proper seal every time.
Specification
:- Product Type: Strap Machine
- Brand: YBICO
- Weight (Approx.) : 3.20 kg
- Model No. : C3180
- Handle Material : Aluminium
- Handle Size : 25.5 inches
- Operation : Manual
- Strapping Width : 32 mm (1-1/4 inches)
- Strapping Thickness : 0.9 mm
- Strapping Type : Steel Strap
- Sealing Method : Double Notch
- Seal Type : Closed Seal
- Weight : 3.20 Kg (Approx.)
Usage
:- Prepare the Materials : Ensure you have the YBICO C3180 sealer, 32mm steel strapping, and closed seals ready.
- Position the Strap : Place the steel strap around the items you wish to bundle, overlapping the ends adequately.
- Insert the Seal : Slide a closed seal onto one end of the strap, ensuring it is positioned correctly for sealing.
- Align the Sealer : Position the YBICO C3180 sealer over the seal and strap, making sure that the double notched area of the tool aligns with the seal.
- Apply Pressure : Grasp the aluminum pipe handle firmly and pull downwards using a smooth motion. The ergonomic design allows for optimal force application while minimizing strain.
- Check Seal Integrity : After sealing, inspect the seal to ensure it is secure and properly crimped.
Maintenance :
- Cleaning : Regularly clean the C3180 sealer to prevent strap debris buildup. Use compressed air daily to blow out any debris and remove larger pieces promptly.
- Handling : Handle the tool with care to avoid drops, which can cause internal damage. Ensure it is stored securely on a sturdy surface when not in use.
Applications
:- Industrial Packaging : Ideal for securing heavy-duty packages and pallets in various industries.
- Construction : Useful for bundling construction materials like steel rods, pipes, and other heavy items.
- Logistics and Shipping : Ensures that goods are securely strapped during transportation, reducing the risk of damage.
- Manufacturing : Suitable for strapping products and materials in manufacturing plants for storage and shipment.
