Brand: Kirloskar

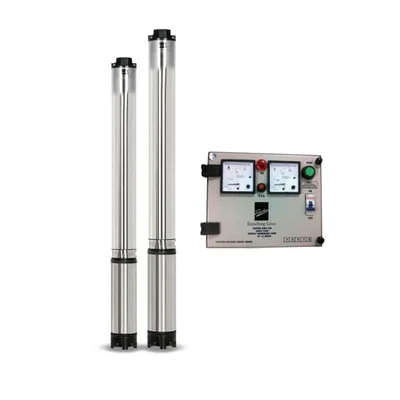

Kirloskar 2HP 10 Stages 4 inch 1Phase Water Filled Submersible Pump With CP, 210ft Head- 1 Year Warranty (KS4HF-2010 CP)
SKU: DK-KB-2093
MRP : ₹50400
Offer Price : ₹31600 (Including GST)
Get extra ₹474 Discount (On Checkout)
Delivery By: Dec 17 - Dec 19
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
2 HP Single Phase Borewell Submersible Pump with Control Panel
240 LPM Max. Discharge
64 Meter Max. Head
4 Inch(100 mm) Boring Size
1 Year Warranty
Country of origin: India
Description
Kirloskar 2HP 10 Stages 4 inch 1Phase Water Filled Submersible Pump With CP, 210ft Head- 1 Year Warranty (KS4HF-2010 CP)
Features :
- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
- High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
- Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
- Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
- CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.
Specifications :
- Model No : KS4HF-2010 CP
- Product Type : Borewell Submersible Pump
- Brand : Kirloskar
- Power Source : Corded Electric
- Motor Power : 2 HP (1.5 kW)
- Power Supply : 220V, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- Motor Type : Water Filled
- Current Rating : 13.8 Amps
- Boring Size : 4 Inch(100 mm)
- Max. Head : 210 Feet (64 meters)
- Outlet Pipe Size : 50 mm
- No. of Stages : 10
- Max. Discharge Rate : 240 LPM (14400 LPH)
- Winding Material : Copper
- Weight : 40 Kg (Approx.)
Materials of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Thrust Bearing : Carbon + Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Applications :
- Domestic and community water supply
- Rural water supply
- Gardening and small farm irrigation
- Construction site
- Water supplies for high rise building
Warranty :
- One Year Onsite Warranty
Specifications
:- Product Type: Power - 2HP
- Brand: Kirloskar
