Brand: Packlift

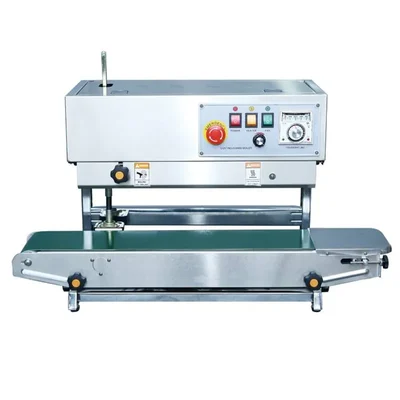

Premium Quality 3 kg MS Vertical Continuous Band Sealer 500W
SKU: DAR-SH-01
₹14525 (Including GST)
Get extra ₹218 Discount (On Checkout)
Delivery By: Mar 4 - Mar 6
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Mild Steel Vertical Continuous Band Sealer 500W
Sealing Speed 0-12 m/min
Sealing Width 6-12 mm
Country of origin: China
Description
This vertical band sealer is a machine that uses heat and pressure to seal High Graded pouches, like laminated pouches continuously. This machine has a conveyor system to seal the pouches through the machine to apply consistent heat and pressure, forming airlock packaging. This machine is used for sealing packages, foods, groceries, seed processing units, pharmaceuticals, chemical industries, dairy, cosmetic and chemical industries, and it is very simple to use. This band sealer is made of high-quality materials, ensuring durability and extending machine life. It has a maximum transport weight of 3 kg, which saves labor effort. This machine may increase packaging despite excessive production.
Features
:- Heavy-Duty Build : Built for durability and heavy use in industrial environments.
- Vertical Sealing : Ideal for sealing pouches or bags in a vertical position.
- Temperature Control : Adjustable sealing temperature for various material types.
- Speed : Capable of sealing large volumes efficiently, with adjustable sealing speed.
- Adjustable Height : The height of the Conveyor belt can be adjusted according to the user.
Specification
:- Brand: Packlift
- Weight (Approx.) : 22.5 kg
- Body Material : Mild Steel
- Voltage : 220 V
- Frequency : 50 Hz
- Power : 500 W
- Sealing Speed : 0-12 m/min
- Sealing Width : 6-12 mm
- Feeding Movement : Right to Left
- Panel type : Analog
- Temperature : 0-300°C
- Max. Conveyor Loading : 3 kg
- Printing Type : Steel wheel embossing
- Internal Gears : Metallic
- Nitrogen Gas Flushing : Optional
- Dimension (L x B X H) : 860 x 420 x 550 mm
- Product Weight : 22.5 kgs (Approx.)
NOTE :
- Conveyor belt color may vary.
- Suitable for High Graded Pouches, just like laminated Pouches.
Usage
:- Preparation Before Use : Place the band sealer on a stable, flat surface. Ensure it is assembled correctly and securely.
- Power Connection : Connect the band sealer to an appropriate power source. Locate the power switch and turn it on. You should see indicator lights showing that the machine is powered up.
- Adjusting Settings : Set the settings according to your need.
- Loading Bags : Ensure that bags are clean, dry, and free from any foreign materials at the sealing edge.
- Sealing Process : Once everything is set up and bags are positioned correctly, press the start button or switch to begin operation.
- Post-Sealing Checks : After sealing, check each bag for proper seals. Once sealed, collect bags from the output side of the conveyor belt.
Maintenance :
- Clean Regularly : After use, clean any residue from around the sealing area and conveyor belt to prevent contamination.
- Turn Off Power : Always turn off and unplug the machine after use to ensure safety.
Applications
:- Retail Packaging : Retail businesses often use continuous vertical band sealers for packaging consumer goods like pet food or cleaning supplies.
- Agriculture Sector : Agricultural products such as seeds and fertilizers can be effectively packaged using this machine.
- Food Processing Industry : In the food processing sector, the vertical band sealer is widely used for packaging items such as snacks, grains, tea, coffee, and other dry goods.
- Pharmaceutical Industry : The pharmaceutical industry utilizes this sealer for packaging medicines, supplements, and other health-related products.
