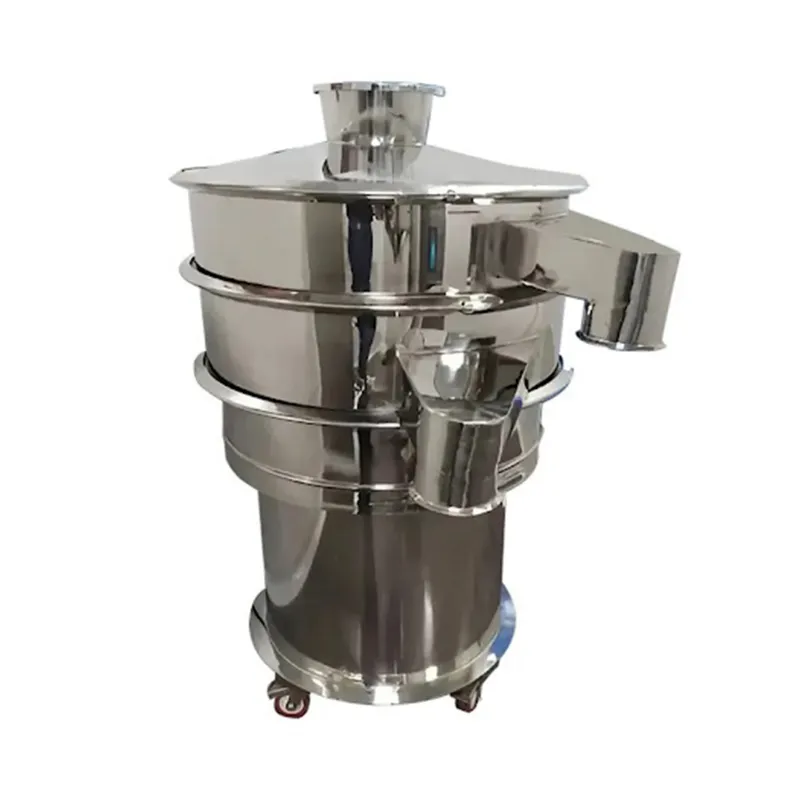

Tools Buying 0.5HP Vibro Sifter Machine 30 Inch Screen, Stainless Steel Body With 150 to 220 Kg/hr Capacity
SKU: SI-VS-18343
₹89800 (Including GST)
Get extra ₹1,347 Discount (On Checkout)
Delivery By: Apr 8 - Apr 10
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Tools Buying Vibro Sifter Machine 30 Inch (76.2 cm) Screen,
0.5 HP Motor Power, Three phase
Stainless Steel Body, 150 to 220 Kg/hr Capacity
Country of origin: India
Description
The Vibro Sifter machine, also known as a vibrating sieve or vibrating screen, is a machine used in a variety of fields to separate particles based on their size. It relies on vibration and gravity to effectively sift and separate materials like powders, grains, and liquids. The machine consists of a mesh screen that vibrates in a circular motion, allowing tiny particles to pass through while retaining larger particles on the screen.
A vibro sifter machine operates by feeding material into the middle of the screen, where the vibration distributes it uniformly. As the material advances towards the screen's edges, particles smaller than the mesh perforations pass through and are collected below, whereas larger particles are ejected at the end of the process. Vibro sifters are commonly used in industries such as pharmaceuticals, food processing, chemicals, ceramics, and cosmetics for various applications including grading, de-dusting, solid-liquid separation, and size-based separation.
Features
:- Gyratory Motion: The Vibro sifter operates on the principle of gyratory vibration, which allows it to separate materials effectively. The specially designed vibratory motor generates this motion, enabling the machine to create multiple plane vibrations.
- Multiple Decks: The Vibro sifter is equipped with multiple sieve decks, which allow for simultaneous separation of different particle sizes. This multi-deck configuration enhances efficiency by processing various materials in one pass.
- Robust Construction: Made from stainless steel, the vibro sifter is designed to withstand rigorous industrial environments. Their robust construction ensures longevity and reliability during operation.
Specification
:- Brand: Tools Buying (Made in India)
- Weight (Approx.) : 150 kg
- Material : Stainless Steel
- Motor Power : 0.5 HP
- Phase : Three
- Power Source : Electric
- Voltage : 420 V
- Power Consumption : 0.25 Unit /hr
- Screen Size : 30 inch (76.2 cm)
- Screening Capacity : 150-220 Kg/hr
- Base Material : Stainless Steel (SS304)
- Operation Mode : Semi-Automatic
- Dimensions (LxWxH) : 110 X 110 X 135 cm
Usage
:1. Preparation of the Machine:
- Before using the vibro sifter, ensure that it is clean and free from any previous materials. This step is crucial to prevent contamination and ensure accurate results.
2. Setting Up the Machine:
- Positioning: Place the vibro sifter on a stable surface to minimize vibrations being transmitted to the floor.
- Check Components: Ensure that all parts, including the dust cover, mesh screens, sieve decks, and clamp rings, are securely in place. The dust cover prevents material spillage and cross-contamination.
3. Loading Materials:
- Feed Inlet: Introduce the materials you wish to sift through the feed inlet located on the dust cover. Make sure not to overload the machine as this can affect its performance.
4. Powering On:
- Electrical Supply: Connect the machine to an appropriate power supply.
- Start Operation: Turn on the power switch to activate the motor. The motor will begin vibrating due to its out-of-balance weight assembly.
5. Monitoring the Sifting Process As the machine operates:
- The top eccentric weight generates horizontal vibrations, causing materials to move across the screen towards its edges.
- The bottom eccentric weight creates vertical vibrations, allowing smaller particles to pass through while larger particles are pushed towards the periphery for discharge.
6. Collecting Separated Materials Once sifting is complete:
- Discharge Oversized Particles: Collect oversize particles from designated outlets.
- Collect Fines: Gather undersized particles that have passed through the screen from their respective outlets.
Maintenance:
- Regular Inspection of Components: Conduct regular inspections of all components, particularly the clamps that hold the mesh in place. Ensure they are functioning correctly to prevent product leakage and excessive wear. Additionally, check flexible connectors for free movement; restricted movement can lead to splits or leaks.
- Mesh Frame Care: Handle mesh frames and gaskets with care as they are prone to breakage. Clean gaskets with non-abrasive solvents, ensuring not to damage them. Regularly check the tension of mesh screens; if they have lost tension, consider re-meshing them.
- Use High-Quality Mesh Materials: Invest in high-quality mesh materials from reliable suppliers to ensure longevity and efficiency in screening processes. Quality materials will maintain their tension better over time, leading to consistent product quality.
Applications
:- Food Processing Industry: Vibro sifter machines are used for screening and separating ingredients such as flour, sugar, spices, and other food products. The machine helps in removing any foreign particles or contaminants from the raw materials, ensuring food safety and quality.
- Chemical Industry: For the separation of chemical and powders based on their particle size, Vibro Sifters are used in the chemical industry as well.
- Cosmetics Industry: Vibro Sifters are widely used in cosmetic industry for sieving cosmetic powders and ingredients ensuring that the final product is free from any impurities or lumps, resulting in a smooth and uniform texture.
- Pharmaceutical Industry: Vibro Sifter machine used in the pharmaceutical industry for sieving and grading powders and granules. The machine helps in removing any oversized particles or impurities from the raw materials before further processing.
