Brand: Wadfow
Wadfow Electrical test kit (WDM94011)
SKU: TI-WE-29253
₹1800 (Including GST)
MRP : ₹2000
Get extra ₹27 Discount (On Checkout)
Delivery By: Apr 4 - Apr 6
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Wadfow Electrical test kit (WDM94011)
Suitable for Residential electrical troubleshooting
Industrial maintenance
General electrical diagnostics
Educational purposes in training environments
Country of origin: China
Description

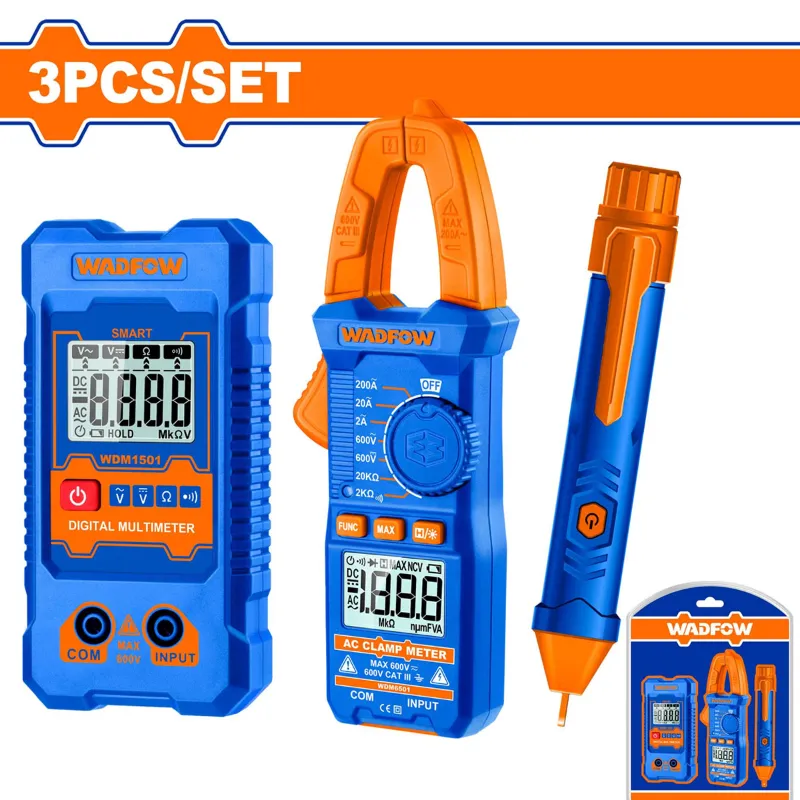

Wadfow Electrical Test Kit (WDM94011) is a comprehensive set designed for electrical testing and measurement. This kit includes three essential tools: a digital AC clamp meter, a digital multimeter, and an AC voltage detector.
Specification
:- Brand: Wadfow
- Weight (Approx.) : 1 kg
- Model No : WDM94011
Digital AC Clamp Meter (Model: WDM6501)
- Display: True RMS with 2000 counts.
- AC Current Measurement: Can measure currents at three ranges: 2A, 20A, and 200A.
- AC Voltage Measurement: Capable of measuring voltages at four ranges: 2V, 20V, 200V, and 600V.
- DC Voltage Measurement: Measures DC voltages across five ranges: 200mV, 2V, 20V, 200V, and 600V.
- Resistance Measurement: Offers resistance measurements across six ranges: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, and 20MΩ.
- Data Hold function to freeze readings on the display.
- Diode test capability to check diode functionality.
Digital Multimeter (Model: WDM1501)
- Display: True RMS with a count of up to 2000.
- Voltage Measurement:
- DC Voltage Range: From 0.8V to 600V.
- AC Voltage Range: From 0.8V to 600V.
- Resistance Measurement: Auto-ranging up to a maximum of 600kΩ.
- Smart Functionality: Enhances measurement efficiency by automatically selecting the appropriate range.
AC Voltage Detector (Model: WTP3503)
- Voltage Detection Range: Detects AC voltages from 70V to 1000V.
- Frequency Compatibility: Operates at frequencies of either 50Hz or 60Hz.
- Alarm Mode:
- Provides both sound and light alarms when AC voltage is detected for safety purposes.
- Equipped with a white LED flashlight for visibility in dark areas.
