Brand: Generic (Imported)

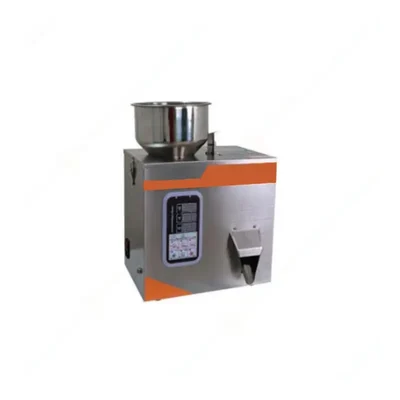

10 gm to 99.9 gm Weighing & Powder Filling Machine (GW10 FM100)
SKU: RD-SP-20221160
₹18999 (Including GST)
Get extra ₹285 Discount (On Checkout)
Delivery By: Feb 9 - Feb 11
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Semi Auto Weighing Filling Machine 10 to 99.9 g
Filling Speed : 10-30 times per min / 300 Bags per Hour
3.5 L Hopper Volume
Country of origin: China
Description
This Weighing & Powder filling machine is used for accurate weighing and filling of ultra fine particles. Signals from the weight sensor are denoted on the Digital display that shows the weight of the particle output. It is used in various industries, including food processing, pharmaceuticals, and chemicals.
Features
:- Precision Weighing : The machine is equipped with advanced load cells or weighing sensors that provide high accuracy in measuring the weight of the powder being filled. This precision is crucial for maintaining product quality and compliance with industry standards.
- Automatic Operation : This model feature automatic filling mechanisms that reduce manual labor and increase efficiency. Users can set desired weights, and the machine will automatically dispense the correct amount of powder.
- User-Friendly Interface : This machine come with an intuitive control panel that allows operators to easily adjust settings such as weight parameters, filling speed, and batch sizes.
- Versatile Applications : The Weighing & Powder Filling Machine can be used for a wide range of powdered products, including flour, sugar, spices, chemicals, and pharmaceutical powders.
Specification
:- Product Type: Granule Filler
- Brand: Generic (Imported)
- Weight (Approx.) : 10 kg
- Model : GW10 FM100
- Body Material : Stainless Steel
- Power Source : Electric
- Required Power Input : 100W
- Voltage : 230V / 50Hz
- Automation : Semi Automatic
- Filling Volume : 10-99.9 gm
- Filling Speed : 10-30 dispenses/min
- Filling Accuracy : ±0.2 gm
- Bucket Diameter : 200 mm
- Bucket Depth : 180 mm
- Storage Hopper Volume : 3.5L
- Size (L x W x H) : 380mm x 280mm x 500mm
- Weight : 10 Kg (Approx.)
NOTE :
- Suitable for ingredients without moisture content.
- Colour may vary.
Usage
:1. Setup the Machine :
- Place the machine on a stable, flat surface.
- Ensure that it is connected to a power source and that all components are securely attached.
2. Adjust the Filling Volume :
- Set the desired filling volume between 1 to 99.9 grams using the control panel.
- Calibrate the machine if necessary, following manufacturer instructions for accuracy.
3. Prepare the Granules :
- Ensure that the granules you intend to fill are clean and free from moisture.
- Place the granules in the hopper of the machine.
4. Start the Filling Process :
- Activate the machine using the start button or switch.
- The machine will automatically dispense the set amount of granules into containers or bags placed below.
5. Monitor and Adjust :
- Keep an eye on the filling process to ensure consistency and accuracy.
- Make any necessary adjustments to settings if inconsistency occur.
Maintenance :
- Check Power Supply : Ensure there are no issues with the power supply and that the insulation layer is intact.
- Sanitation : Clean all material contact parts to maintain hygiene and prevent contamination.
Applications
:- Pharmaceutical Industry : Semi-automatic granule filling machines are employed for filling granules or small pellets into bottles, pouches, or sachets.
- Agricultural Industry : Granules and pellets in agriculture, such as fertilizers, pesticides, and herbicides, are often filled into bags or containers using semi-automatic granule filling machines.
- Pet Food Industry : Semi-automatic granule filling machines are used for packaging various types of pet food, such as granulated dry food or treats.
- Food and Beverage Industry : Semi-automatic granule filling machines are extensively used for filling a variety of granulated food products like Rice, sugar, salt, tea, coffee, snacks and cereals etc.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 41 cm X 31 cm X 56.5 cm
Package Weight
:
11.30 Kg
