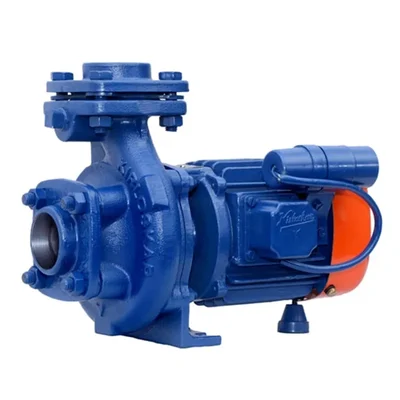

Kirloskar 2HP Single Phase Centrifugal Monoblock Pump, 318 LPM Max Discharge, 50x40 mm (KDS-225) - 1 Year Warranty

Brand: Kirloskar

Kirloskar 2HP Single Phase Centrifugal Monoblock Pump, 318 LPM Max Discharge, 50x40 mm (KDS-225) - 1 Year Warranty

Name: Kirloskar 2HP Single Phase Centrifugal Monoblock Pump, 318 LPM Max Discharge, 50x40 mm (KDS-225) - 1 Year Warranty
Brand: Kirloskar
SKU: TI-KK-14638
Price: 17499 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-KK-14638

MRP : ₹23700 ₹17499

26% OFF!

11218 people have viewed this recently

Get Extra ₹262 OFF on Prepaid Orders

Delivery By: Dec 18 - Dec 20

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹17499 (Including GST)

MRP : ₹23700

26% OFF!

Get Extra ₹262 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Kirloskar (KDS-225) 2HP Monoblock Pump, 50 x 40 mm

Single Phase Connection

24m Max. Head, 318 LPM Max. Discharge

1 Year Warranty

Country of origin: India

Brand: Kirloskar
Power : 2 hp
Weight (Approx.) : 39.5 kg
Flow Rate : 318 lpm
Head : 24 meter

Model No. : KDS-225
Product Type : Monoblock Pump
Brand : Kirloskar
Wattage : 1.5 kW
No. Of Pole : 2
Rated Voltage : 240 V, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
Head Range : 8 to 24 Meter (26 to 78 Feet)
Pipe Size (Suction x Delivery) : 50 x 40 mm
Discharge Rate : 318 to 186 LPM (19080 - 11160 LPH)
Insulation : B / F Class
Protection : IP 44 / IP 55

Material Of Construction :

Impeller : Cast Iron/Noryl
Delivery Casing : Cast Iron
Motor Body : Cast Iron
Pump Shaft : Carbon Steel
Sealing : Mechanical Seal

Centrifugal monoblock pumps are frequently utilized in a variety of settings, including irrigation and water supply. The centrifugal force theory explains the operation of these pumps; as the impeller rotates, a centrifugal force is created that pushes the liquid toward the pump casing's outer edges, increasing pressure and flow rate.

Features

Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in case of low voltage.
Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations.
High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.
