Brand: Modern Dairy Machines

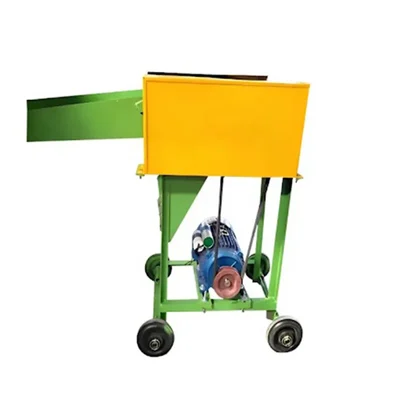

Heavy Duty Horizontal Chaff Cutter/Grass Cutter Machine 1000 Kg/hr with 2.5HP Motor
SKU: SD-MD-20233055
MRP : ₹44599
Offer Price : ₹37799 (Including GST)
Get extra ₹567 Discount (On Checkout)
Delivery By: Jan 30 - Feb 1
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Horizontal Chaff Cutter/Grass Cutter Machine With 2.5 HP Motor
1000 kg/hr production Capacity
Useful for Animal Feed, Dairy Farming, Goat Farming, Sheep Farming, etc.
Country of origin: India
Description
The Chaff/Grass Cutter machine is a mechanical device that cuts chaff, straw, and hay into small uniform pieces before mixing them with other fodder materials for consumption by cattle and livestock. This machine is equipped with a 2.5 HP electric motor to carry out the cutting tasks, and has two rotating and one fixed heavy duty blade to help achieve the required cutting results. The device minimizes the amount of effort and time required to prepare fodder for animals while also simplifying the process. It has a cutting capability of 1000 kilograms per hour, making it ideal for high-volume fodder preparation and cutting activities.
Features
:- Efficient Cutting: Designed to finely chop straw and fodder, enhancing feed digestibility.
- Ease of Operation: User-friendly design facilitates simple handling and operation, reducing labor requirements.
- Durability: Constructed from high-quality materials to ensure longevity and withstand rigorous use.
- Compact Size: Space-saving design makes it suitable for both small farms and large agricultural operations.
Specification
:- Product Type: Motor/Engine Operated
- Brand: Modern Dairy Machines
- Material : Mild Steel
- Model No. : CCH2x5
- Motor Power : 2.5 HP
- Motor Speed : 1440 RPM
- Power Source : Electric
- No. of Blades : 2
- No. of Roller : 2
- Output Capacity : 1000 kg/hr
- Weight : 72 Kg (Approx.)
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect a motor to an appropriate power source, in order to start working.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Fodder Preparation: One of the main applications of chaff cutters is in the preparation of fodder for livestock. By cutting or shredding plant materials such as straw, hay, or other agricultural residues into smaller pieces, these machines facilitate easier consumption and digestion by animals.
- Animal Nutrition: Chaff cutters contribute significantly to animal nutrition by reducing the particle size of fodder. Finely chopped or shredded fodder increases the surface area available for microbial activity in the rumen of ruminant animals. This enhancement leads to improved digestion and nutrient absorption, resulting in healthier animals, increased milk production in dairy cattle, and enhanced weight gain in meat-producing livestock.
- Cost Savings: By utilizing chaff cutters effectively, farmers can make optimal use of crop residues that might otherwise go to waste. This practice reduces reliance on additional feed purchases and minimizes feed wastage while maximizing resource value.
