Use to fill grains, beans, seeds, fruit, preserved fruit, spices, electronic components, diamonds, small hardware, plastic beads etc..
Country of origin: China
Description

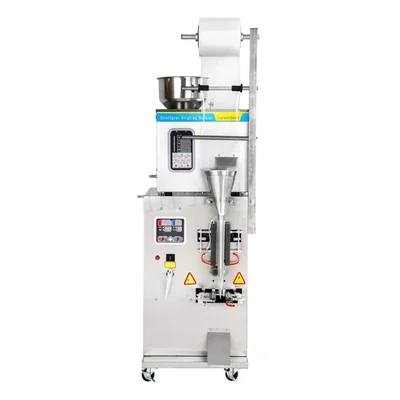

SMART Automatic 1 to 100 gm FFS Multi-Function Weigh Filling and Packaging Machine (Back/Center Seal)
Description :
The 1 to 100gm Side Sealer FFS (Form Fill Seal) Bagger with a weigh filler is a packaging machine used for filling and sealing pre-formed pouches with various products, such as granules like Rice, Sugar, Dal, Grains, Granules, Pulses, small grain with good uniformity, such as oatmeal, sugar, salt, seeds, rice, sesame etc. The machine is designed to package products in pre-formed bags with a center-sealing mechanism. The weight filler can handle up to 100gm of product.
Features:
Automatic operation: The machine is fully automatic and can operate continuously without the need for manual intervention.
Precise filling: The weigh filler is equipped with a high-precision weighing system that ensures accurate and consistent filling of the pouches.
User-friendly interface: The machine has an easy-to-use interface that allows operators to control and monitor the entire packaging process.
The machine can handle a wide range of pouch sizes and product types, making it suitable for various packaging applications.
Specifications :
Product Type : Automatic Packaging Machine
Voltage : 100/220 V AC
Frequency : 50/60 Hz
Power : 500 W
Filling Range : 100 gm
Coding Technology : Not available with this machine.
Filling Speed : 10-30 Pcs/min
Filling Accuracy : +-2gm
Shoot Size : 160mm
Weight : 100 Kgs (Approx.)
Machine Operational Guide :
First, the machine uses a roll of packaging film that is rolled around a core and typically referred to as roll stock. The film is pulled off the roll by belts and is then transferred to a forming tube. There are, of course, other options with different machines but this is the most used option.
The film is then pulled off the roll using a dancer arm, keeping the film tension throughout. After this process there's an optional printing step. If needed, most form fill and seal machines will print dates, codes, graphics, etc. on the film.
After the printing stage, the film is brought towards the forming tube. First it moves past the photo-eye sensor. The photo-eye sensor detects where the film is and where it needs to be formed and cut.
The forming tube is next, and this is where the film is turned into a bag. There's two different types of seals according to the customer's choice. A lap seal and a fin seal. The lap seal overlaps the two outer edges of film to create a flat seal. A fin seal takes the insides of the two outer edges and creates a seal that sticks out. Lap seals usually use less materials than a fin seal. The film is pulled down through the forming tube and creates the shape of a bag.
Next, the bag is filled and sealed. To simplify the process, the machine hot seals the bottom part of the film, the product is dispersed into the bag, and the machine finishes with the top seal. The bag is then discharged to a conveyor system or into a box, based on your packaging operation.
Note:
Get Instant Discount on Full Advance Payment against this product.
Feel free to contact us for machine with Automatic Coding Technology.
