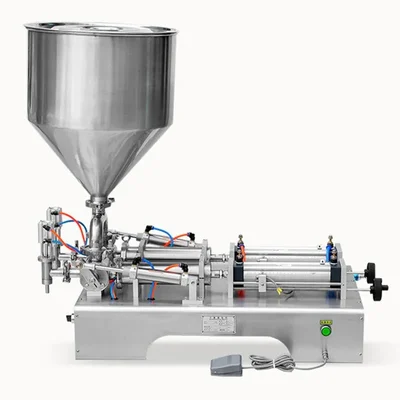

Double Nozzle Semi Automatic Paste Filling Machine 50-500 ml

Brand : Generic (Imported)

SKU : DAR-SH-2128

MRP : ₹78499

₹66499

15% OFF!

957 people have viewed this recently

Get Extra ₹997 OFF on Prepaid Orders

Delivery By: Jun 14 - Jun 16

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Double Nozzle Semi Automatic Paste Filling Machine 50-500 ml
1500 bottles per hour Efficiency

50-500 ml Filling Volume

Country of origin: China

Specification

Brand: Generic (Imported)
Weight (Approx.) : 31.5 kg

Body Material : Stainless Steel
Power source : 220V/110V
Phase : Single
Frequency : 50Hz
Filling Head : Double Head
Filling Volume : 50-500 ml
Capacity of Hopper : 20 L
Air Supply : 400 LPM
Air Pressure : 0.8 Mpa
Efficiency : 1500 bottles per hr
Dimension (L x W x H) : 880 x 230 x 665 mm

NOTE : This machine is not suitable for Grease filling.

Description

This semi-automatic paste-filling machine is ideal filling equipment for medicament, light industry, food, pesticide, and other special industries. Simple operation is the main feature of the machine. The piston and hopper of the cylinder are made up of 304 stainless steel and Polytetrafluoroethylene (PTEF). It accords with GMP requirements. The filling range and speed are adjustable. The filling unit has a function of leaking-proof, silk nuzzling-proof. The machine is able to change to a multi-head, burst-proof, and flood-proof filling unit according to the requirements of customers.

Features

Semi-automatic piston-type filling machine.
Automatic and manual switch, Emergency stop switch, you could stop and start the machine at any time.
High-accuracy filling, Filling volume, and speed can be arbitrarily regulated.
Simple and reasonable structure, easy operation. All the parts that will contact the materials were made of 304 stainless steel, large-scope chrome plating structural parts, effectively preventing rust and stuck.
This pneumatic filling machine is of wide applicability.
It is suitable for filling viscosity liquid-like sauce, jam, shampoo, lotion, perfume, etc with soft particulate.

Applications

Food Industry : It is suitable for filling sauces, jams, and other thick food products.
Cosmetics : The machine can fill creams, lotions, and gels used in personal care products.
Pharmaceuticals : It is utilized for dispensing ointments and other viscous medicinal products.
Chemical Industry : The machine can handle adhesives and other thick chemical substances.

Usage

Setup the Machine :

Place the machine on a stable, flat surface.
Ensure that all parts are securely assembled according to the manufacturer’s instructions.

Adjust the Filling Volume :

Set the desired filling volume (between 50-500 ml) using the adjustment knob.

Prepare the Paste :

Ensure that the paste is at an appropriate viscosity for filling. If necessary, mix or dilute it to achieve optimal flow.

Fill the Hopper :

Pour the prepared paste into the hopper of the machine, ensuring not to overfill.

Select Operating Mode :

Choose between manual or automatic mode based on your production needs.

Start Filling Process :

Press the start button or activate the foot pedal to begin filling.
Monitor the process to ensure consistent filling and check for any clogs or issues.

Collect Filled Containers :

Position containers under the nozzle to catch filled paste.
Ensure containers are stable and aligned properly for accurate filling.

Maintenance :

Regular Cleaning : After each production run, thoroughly clean all parts that come into contact with the paste. This includes the filling nozzle, hopper, and any other components.
Inspection for Wear and Tear : Conduct regular visual inspections to check for signs of wear, leaks, or corrosion on seals and gaskets.
