Short Description

HPM 350 Amp DC Welder Cum Generator Machine With Battery

Recoil & Self Start

Diesel Run

20 V To 39 V Working Voltage

2 Volt, 35 Ah Battery Capacity

Country of origin: India

Description

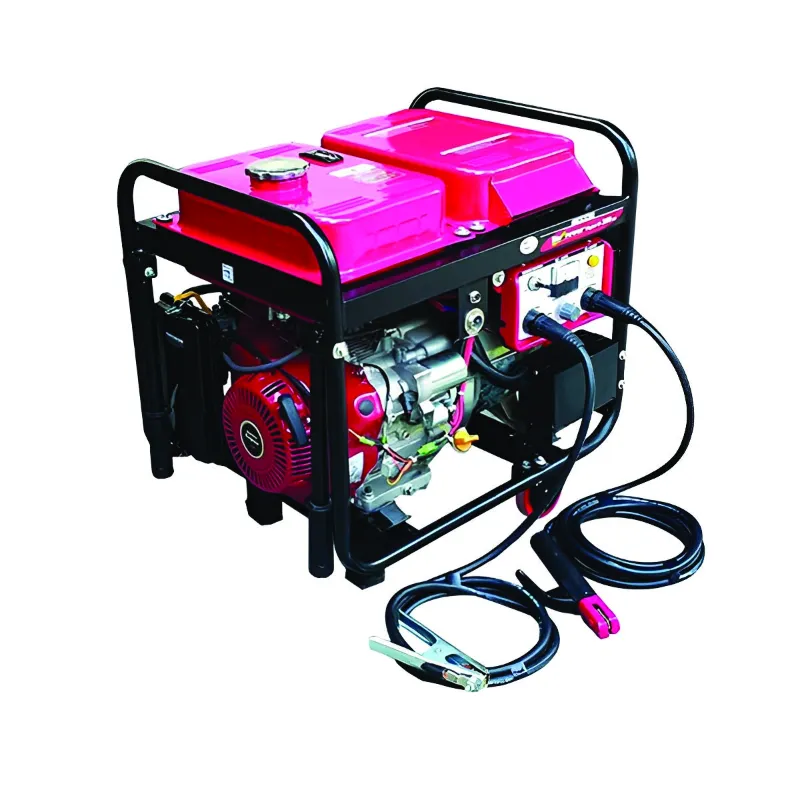

HPM 350 Amp Recoil & Self Start Diesel Run DC Welder Cum Generator Machine With Battery (HPW-Diesel 350 D)

Description :

• HPM-powered portable and high power arc welding generator machine. Structural Welding Rods 7018 Size 5mm Electrode are among the welding's that this welding generator is appropriate for. Very effective for welding big diameter pipe lines.


Features :

• Sheet Metal Welding Attachment
• A.C. Circuit Protector
• Engine Oil Protection
• Low Fuel Protection
• A.C. Pilot Lamp
• Electronic Oil Alert & Indicator
• Fuel Level Gauge
• A.C. Output Sockets
• Costar Wheels & Handle

Specifications :

• Model No. : HPW - Diesel 350 D
• Product Type : Welder Cum Generator
• Brand : HPM
• Battery Capacity : 12 Volt, 35 Ah
• Dimensions (L x W x H) : 1005 x 510 x 715 mm

• Weight : 82 Kg(Approx.)


DC Welding :

• Maximum Output (Duty Cycle 60%) : 350 Amps
• Welding Output at 100 % duty Cycle : 275 Amps
• Working Voltage : 20V to 39V
• Open Circuit Voltage : 80 Volt (Minimum)

• Current Regulation Amps : *60-350
• Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge, Twin SCR Block
• Electrode diameter : 3 mm to 6 mm

• Alternator Type : Multi-phase, Brush less with Rear Earth Alternator Type Magnet Rotor


AC Generator :

• Maximum Ac Output : 5000VA
• Rated Output Current : 17.4 Amps.
• NFB Amps : 18 Amps.
• AC. Voltage at No Load : 240Volts±10 Volts, Single Phase
• AC. Voltage at Rated Load : 220Volts±10 Volts, Single Phase
• Frequency (Adjustable) : 50 to 60Hz.
• Alternator Type : Brushless, Rare Earth Magnetic Rotor, THD ≤ 5 %, Pure Sine Wave.
• Class of Insulation : F

Engine :

• Model : HM192F

• Type : 4-Stroke, OHV, Vertical, Single Cylinder, Direct Injection
• Maximum Power : 14 HP
• Bore X Stroke : 92x72 mm

• Displacement : 499 cc

• Starting System : Recoil Start & Self Start

• Fuel : Standard Diesel

• Fuel Tank Capacity : 13 Liters

• Fuel Consumption : 1.3 Ltr/hr

• Continuous Operating Hour : 10 hr

• Lube. Oil Capacity : 1650 ml

• Lubricating Oil Consumption : 4.3 gm/Hr


Accessories :

• AC Plug : 1 Pc

• Tool Kit : 1 Set

• Welder Holder : 1 Set

• Earthling Clamp with 3 Mtr. Cable : 1 Set

• Oil Funnel : 1 No

• Owner's Manual : 1 No

• Battery Terminal : 1 Set

• Battery Tray & Holding Set : 1 Set


Optional Accessories :

• Sheet Metal Welding Attachment (Helps to adjust low current up to 40 Amps.) : 1 Kit (Additional Cost)

Panel And Other Standard Features :

• A.C. Circuit Protector : Yes
• Engine Oil Protection : Electronic Oil Alert & Indicator
• Low Fuel Protection : Yes
• A.C. Pilot Lamp : Yes
• Fuel Level Gauge : Yes
• A.C. Output Sockets : 1 Nos.
• Costar Wheels & Handle : Yes

Note :

• Do not use the welder for work other than welding.
• Do not touch the live part.
• Do not solder in places where skimming, cleaning and spraying are required.
• When using, please wear a protective cover or protective clothing.

Specifications

 :

• Brand: HPM
